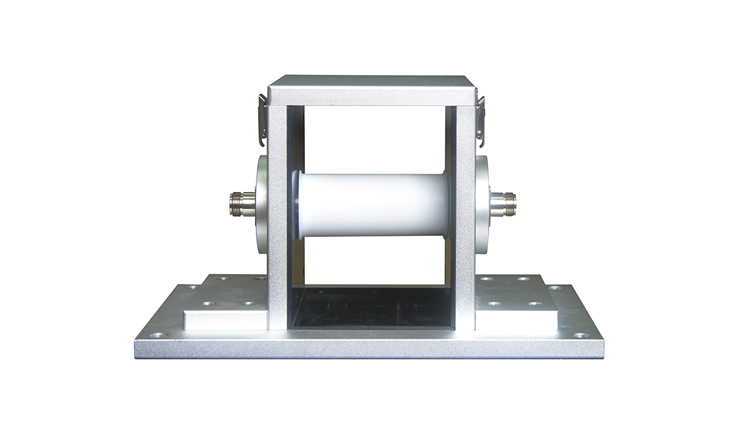

The BCICF-200 is a kind of wide-band transmission/coupling device used for the calibration of current injection/monitoring clamps, which has the characteristics of low voltage SWR and distortion-free waveform. It meets the requirements of MIL-STD-461E /F/G, ISO 7637-3:2007/2011 and could be widely used in EMC conductive susceptibility (immunity) test.

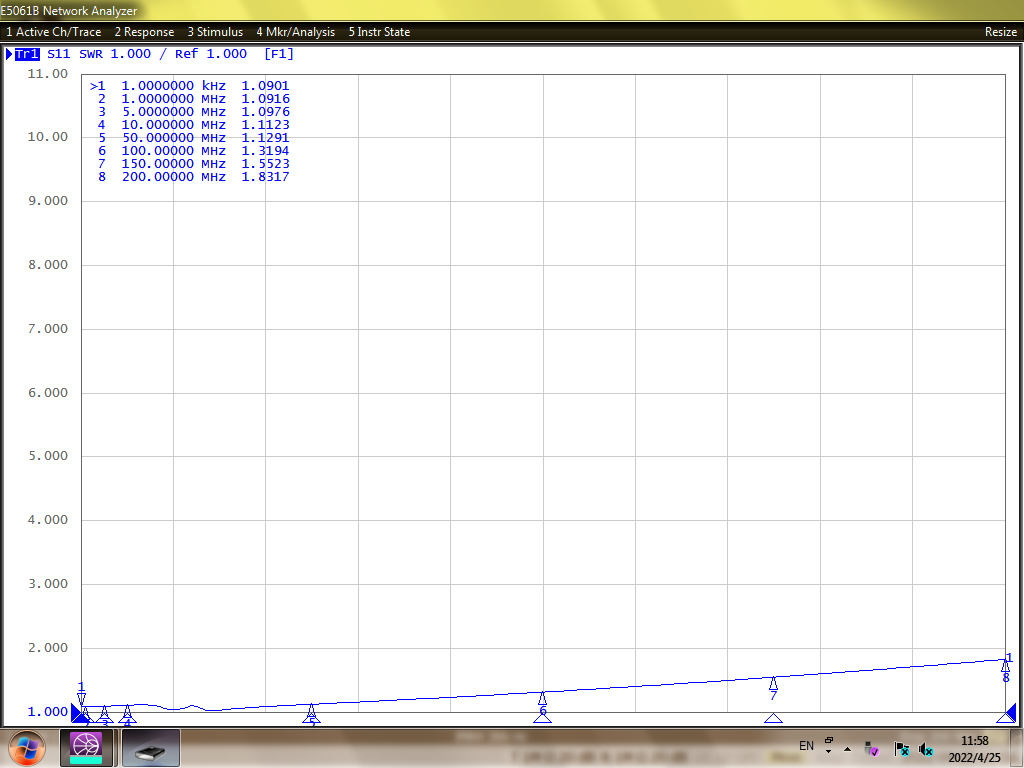

Voltage SWR Curve of BCICF-200
| Technical Parameters | |
|---|---|
| Frequency | DC ~200 MHz |
| Characteristic impedance | 50 Ω |
| Voltage Standing-wave ratio | ≤2 |
| Internal Length | 100 mm |
| Internal Width | 127 mm |
| Internal Height | 135 mm |
| Weight | About 4.4 kg |
