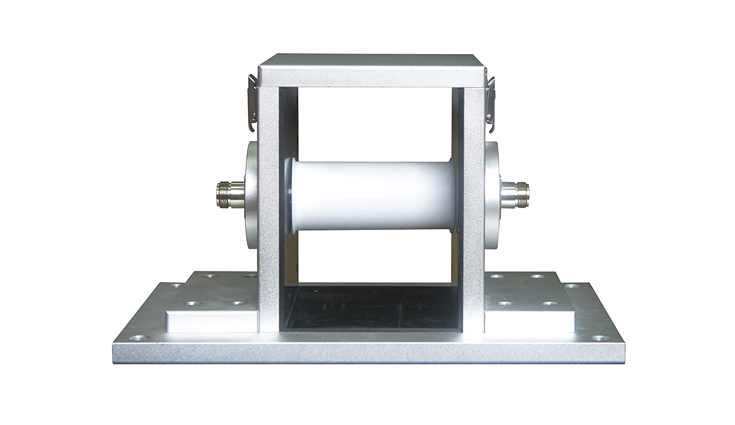

BCICF-400 is used for the calibration of current injection clamps. current injection clamps are widely used to transmit time-harmonic signal current or pulse signal current to EUT through magnetic coupling, and has the characteristics of distortion-free waveform and physical isolation from EUT, meeting the requirements of MIL-STD-461E /F/G (CS114, CS115, CS116), ISO 7637-3:2007/2016 and other standard current injection requirements.
| Technical Parameters | |
|---|---|
| Frequency | DC 400 MHz |
| Typical Impedance | 50 Ω |

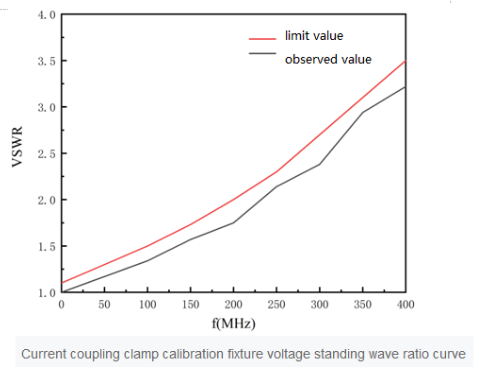

| Voltage Standing Wave Ratio | ≦3.5 |
| Internal Diameter | 100 mm |
| External Diameter | 128 mm |
| Height | 135 mm |
| Weight | 4.4 kg |
