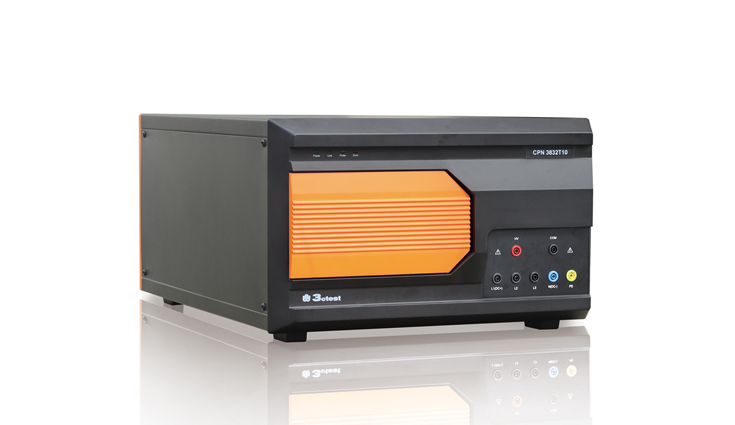

CPN 3832T10 Current wave coupled decoupling network，With the host S6C1000 for 8/20μs current waveform test, the coupled pulse current up to 10 kA. EUT maximum load capacity AC 380V 32A three-phase five-wire, DC 380V 32A, the equipment is simple and fast operation, high reliability.
| Comply with IEC 61643-11 pulse current immunity test technical parameters | |
|---|---|
| Three-phase Fully automatic coupling/decoupling
network |
Conform to the EN/IEC 61643-11, GB/T 18802.11 coupling pulse current wave test
Current up to: 10kA (8/20 μs) Note: The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator |
Output Current | Up to 10kA(8/20us) |
| Coupled Network Port | L1、L2、L3、N、PE |
| Coupling Path | L1、L2、L3、N、arbitrary combination |
| Coupled Switching Mode | Automatic switching |
| Coupled Apparatus | Direct coupling |
| EUT Load Capacity | Max AC 380V（Lx – Lx）、32A
Max DC 380V 32A |
| General parameters | |
| Working Power Supply | AC 110V/220V ±10%，50/60Hz ±5% |
| Fuse | 6 A |
| Maximum Power Consumption | 200 W |
| Auxiliary Interface | D-sub 25p |
| Grounding Connection Mode | Use flat grounding line |
| Dimension | 6U |
| Weight | Approx 47Kg |
| Ambient Temperature | 15-35℃ |
| Relative Humidity | 45% – 75% |
| Atmospheric Pressure | 86kPa – 106kPa |

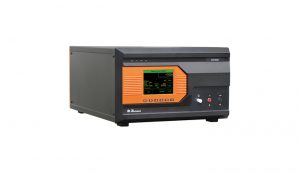

Model：S5C800
S5C800 is a new type of impulse current simulator developed according to the requirements of IEC 61643-11 and GB/T 18802.11 standards. It can output 8/20 μs pulse current waveform with a maximum output current of 8 kA.
Model：S5C800
S5C800 is a new type of impulse current simulator developed accor
...
Model：S10A series
The impulse current simulator S10A series is designed as per IEC 61643-11, GB/T 18802.11 and IEC 61312-1.
Model：S10A series
The impulse current simulator S10A series is designed as per
...

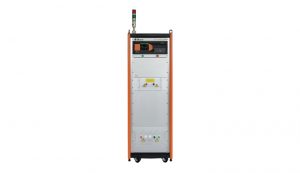

Model：S20D series
The impulse current simulator S20D series is designed as per IEC 61643-11, GB/T 18802.11 and IEC 61312-1, which is capable of generating 10/1000 μs short-circuit current waveform.
Model：S20D series
The impulse current simulator S20D series is designed as per
...
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a control box MCS2000-6U and a simulator S12A500. It can output a 10/350 μ s pulse current waveform with a maximum output current of 5000A.
Model：S12A500 / MCS2000-6U
The impulse current testing system consists of a co
...
