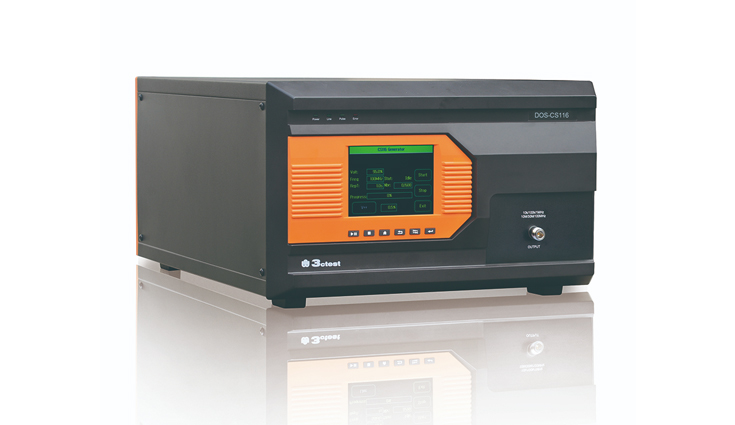

Damped Sinusoidal Transients Generator

Model：DOS-CS116

High Frequency Damped Sine Wave Generator DOS-CS116 is a high end generator which is designed to meet MIL-STD-461E/F/G CS116, GJB 151A-97 CS116.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

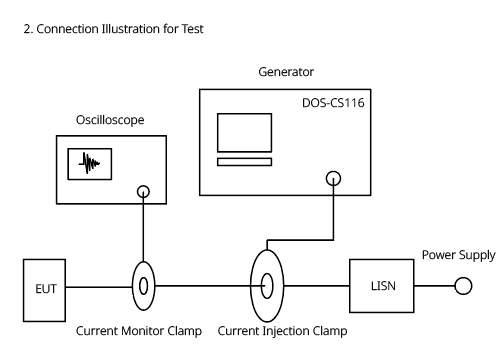

High Frequency Damped Sine Wave Generator DOS-CS116 is a high end generator which is designed to meet MIL-STD-461E/F/G CS116, GJB 151A-97 CS116, and GJB 151B-2013 CS116. This generator can produce 6 kinds of damped sine/cosine waveforms with frequency from 10kHz to 100MHz. It is used to perform conducted susceptibility tests on all types of interconnection cables and power cables of aircrafts, surface warships, submarine, space and terrestrial system.

Features:

  • 5.7 inch touch screen front panel operation;
  • In compliance with MIL-STD-461 E/F/G CS116, GJB 151A-97, and GJB151B-2013 CS116;
  • 6 kinds of basic oscillation frequencies from 10 kHz to 100 MHz;
  • 6-in-1 output terminals, easy to operate;

Standard

  • GJB 151A-1997 CS116
  • GJB 151B-2013 CS116
  • MIL-STD-461 E/F/G CS116

Specifications

Technical Parameters
Oscillation Frequency 10 kHz, 100 kHz, 1 MHz, 10 MHz, 30 MHz, 100 MHz
Test Current Range (Loop Impedance 100 Ω) 10 kHz ≥0.1 A
100 kHz ≥1 A
1 MHz ≥10 A
10 MHz ≥10 A
30 MHz ≥10 A
100 MHz ≥3 A
Output ImpedancE ＜100 Ω
Damping Factor（Q） 15 ± 5
Repetition Rate 1 s～9 s
Output Interface Type N
General Parameters
Power supply AC 110/220 V，±10%，50-60 Hz

(Default setting: AC 220 V for mainland China）
Environment temperature 45%-75% RH（no condensation）
Relative humidity 15-35 ℃
Dimension 19”，6 U
Weight Approx.26.5 kg

Downloads

Adobe PDF

Damped Sinusoidal Transients Generator DOS-CS116 Datasheet

Language: English

Reviews

There are no reviews yet.

Be the first to review “Damped Sinusoidal Transients Generator”

Your email address will not be published. Required fields are marked *

Related products

  • MIL-STD-461 Series/ GJB 151、181 Series

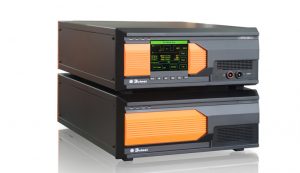

    Vehicle-Mounted Power Failure Simulator
