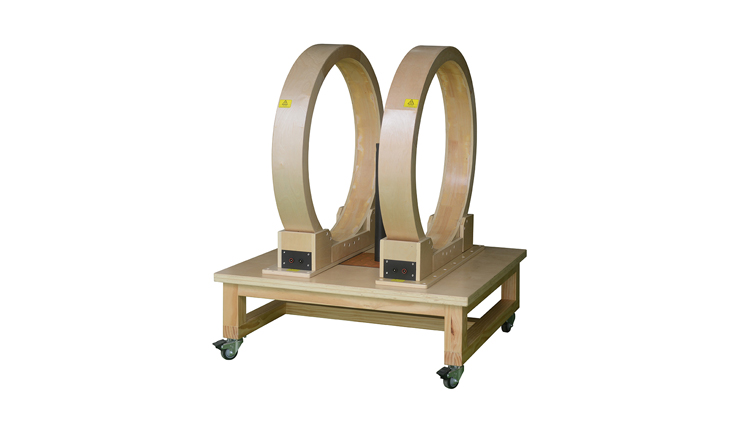

The Helmholtz Coil TYXH 1300 is designed as per MIL-STD-461E\F\G RS101 and ISO 11452-8, it is used for generating DC magnetic field in magnetic field immunity test.
| Technical Parameters | |
|---|---|
| Frequency | DC |
| Magnetic Field Strength | ≤3000 A/m |
| Coil Diameter | 1000 mm |
| Turns | 150 |
| Max. Current (RMS) | 30 Amperes |
| Dimension | 1200×1100×1472 mm |
| Weight | 130 kg |
