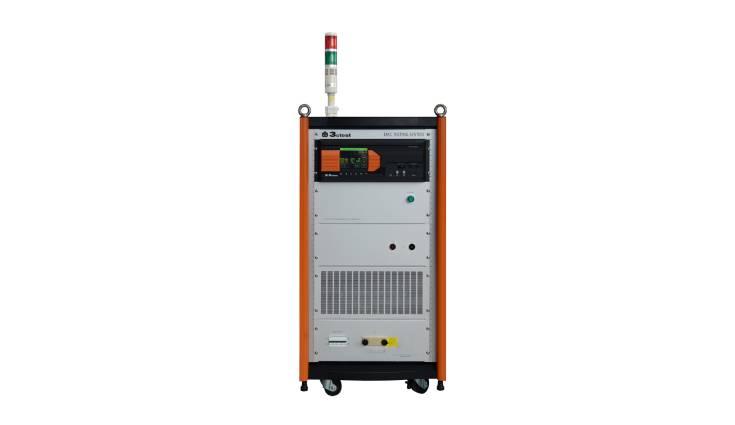

The DC magnetic field disturbance simulator MFS 1000D is designed in accordance with BS EN 12895:2015 on the basis of new control platform. It mainly used in the immunity test to external electromagnetic fields of industrial truck.
| Technical Parameters | |
|---|---|
| As per Standards | BS EN 12895:2015 |
| Magnetic Field Strength | 1 A/m – 1000 A/m |
| Current Distortion Rate | <8% |
| Pulse Interval | 1 s – 9,999 s |
| Test Duration | 1 A/m ~ 100 A/m: continuous from 1 s to 28,800 s; ≥100 A/m: continuous for 10 s |
| Triggering Mode | Automatic, manual or external signal triggering |
| Coil Dimension | 3,000*3,000 mm |
| Coil Shape | Rectangle |
| Test Direction | 90°/180° |
| Coil Turns | 60-turn |
| General Parameters | |
| Display screen | 5.7” TFT touch screen |
| Operating power supply | 110 V / 220 V, ±10%, 50/60 Hz (AC 220 V 50 Hz by default) |
| Max. Power consumption | 200 W |
| External Trigger Input | BNC, 5 V TTL |
| Running Control Input | BNC, 5 V TTL |
| Warning Light Output | 0-220 V AC 10 A |
| Safety Circuit | Work will be stopped when safety circuit is open |
| Failure Detection | The failure information will be displayed on LCD in front panel when failure occurs and interrupt the working of instrument. |
| Working Status Indication | LED indication and LCD display on front panel |
| Earthing Mode | Flat earth line |
| Working power | 380 VAC/32 A |
| Dimension | 22U |
| Weight | Approx.130 kg |
| Operating temperature | 15 ℃~ 35 ℃ |
| Operating humidity | 45%–75% |
| Operating air pressure | 86 kPa – 106 kPa |
