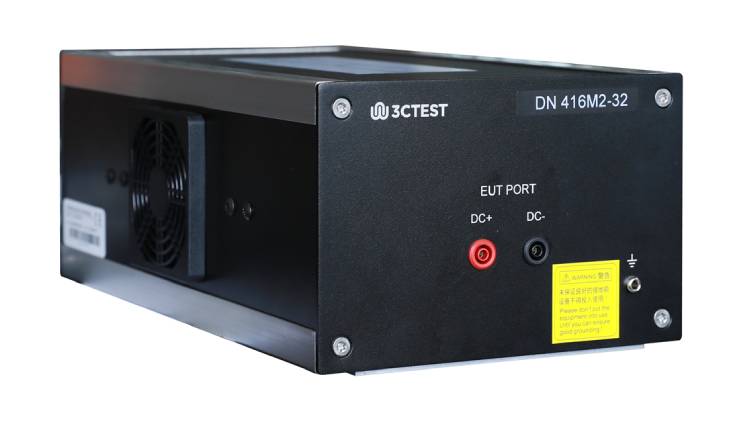

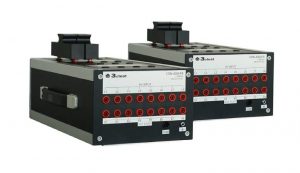

Decoupling Network DN 416M2-32

Model：DN 416M2-32

DN 416M2-32 decoupling network is suitable for (0 Hz-150 kHz common mode conducted immunity) 2-wire cables, which have a common decoupling can reach 60 dB.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

DN 416M2-32 decoupling network is suitable for (0 Hz-150 kHz common mode conducted immunity) 2-wire cables, which have a common decoupling can reach 60 dB. Design strictly in accordance with the requirements of IEC 61000-4-16:2015 standard.

Features

  • Decoupling frequency: DC-150 kHz.
  • Air-cooled
  • High voltage resistor connection terminal.
  • Banana head terminal signal injection.

Standard

  • IEC 61000- 4-16
  • EN 61000-4-16

Specifications

Technical Parameters
Decoupling Frequency DC/15 Hz-150 kHz, CW wave
Decoupling Mode 2-wire common mode (simultaneously to ground)
Decoupling Device 10 μF capacitor
Decoupling Inductance 2×38 mH
Common Mode Decoupling >60 dB
Working Voltage 400 V DC max
Working Current Max 32 A
AE/EUT Port Type 4 mm banana head
Signal Injection Port Type 4 mm banana head
General parameters
Size 360 mm x 220 mm x 135 mm (length x width x height)
Weight About 5 Kg
Shell Material Aluminum material
Ambient Temperature (operating conditions) 15 ℃ – 35 ℃
Relative Humidity (operating conditions) 45%-75%
