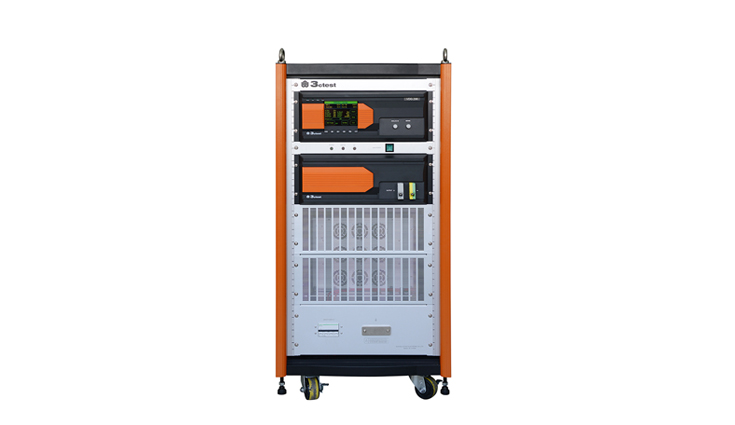

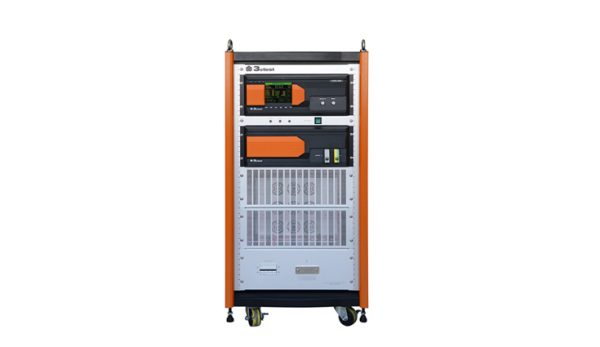

The direct-current surge voltage pulse generator VDG 298 is designed according to GJB 298 and the characteristics of 28 V DC power supply system of military vehicles. With PC controlled voltage variation, tests of normal operation, single malfunction, starting surge disturbance can be performed.
| Technical Parameters | |
|---|---|
| Rated Voltage | 20 V – 35 V |
| Surge Voltage | 40 V – 100 V |
| Surge Duration | 50 V – 1,000 ms |
| Surge Period | 1 s – 99 s |
| No. Of Surges | 1 – 9,999 |
| Output Impedance | 20 mΩ or 500 mΩ |
| Max Output Current | 200 A |
| General Parameters | |
| Power supply | AC 110 V / 220 V |
| Operating Temp. | 0℃ – 35℃ |
| Comparative Temp. | 15℃ – 35℃ |
| Dimension | 19”, 22 U |
| Weight | Approx 50 kg |
