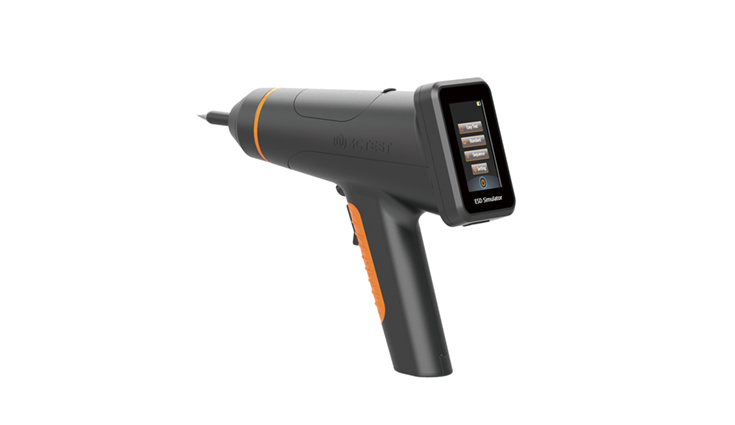

EDS MAX20

Model：EDS MAX20

The EDS MAX20 is 3CTEST’s fourth – generation electrostatic discharge simulator in compliance with IEC 61000 – 4 – 2 and other standards.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The EDS MAX20 is 3CTEST’s fourth – generation electrostatic discharge simulator in compliance with IEC 61000 – 4 – 2 and other standards. This new product has a test voltage up to 20 kV and features 3.5 – inch high – definition color screen, along with compact mechanical design, intuitive UI design, lightweight, and impeccable waveforms ….

With three test modes designed in this equipment, the EDS MAX20 offers customers convenient operation tailored to their specific testing requirement, catering not only to research and development stage but also to quality check stage.

Features
  • 3.5” HD color screen.
  • Test voltage 20 kV.
  • 1.25 kg weight ( incl. battery).
  • Exquisite ergonomic design and UI design.
  • Built – in 3 test modes: standard test, sequence test and easy test.
  • Changeable discharge tip.
  • Support remote control via optical fiber communication.
  • Up to 18 working hours for rechargeable battery.

Standard

  • Bellcore GR-1089-Core
  • ISO 14304
  • IEC 61000-6-2
  • IEC 61000-6-1
  • IEC 61326
  • IEC 61340-3-1
  • IEC 61000-4-2
  • ITU-T K.20

Specifications

Technical Parameters
Test Voltage 0.5 kV – 20 kV( ± 5% )
Voltage Step 100 V
Polarity +, -, + / –
Holding Time 5 s – 10 s
Discharge Tip Air discharge tip and Contact discharge tip
RC module 150 pF / 330 ohm
RC Module Identification Automatic Identification and display
Control Mode Touch screen, trigger button, optical fiber remote control
Frequency Single, 0.1Hz,0.2Hz,0.5Hz,1Hz,2Hz ,5Hz,10Hz and 20Hz
Trigger Mode Automatic, manual, remote
Counter 1 – 9999
Sequence Test Up to 4 sequence levels
Counter Countering happens upon tips voltage lowered than setting voltage thresholds
Voltage Thresholds 50%, 60%, 70%, 80%, 90%
Temperature and Humidity Built-in temperature and humidity meter, serving asreal-time test environment record and protection function.
Battery Type Lithium battery
Battery Group Voltage 3 * 3.7 V
Battery Capacity 27 Wh
Battery Life 12h @ contact discharge 17 kV, 1 Hz, first positive and then negative

18h@ contact discharge 8 kV, 1Hz, first positive and then negative
Power Supply for Battery Charger 100 V – 240 V，50 – 60 Hz
Battery Charge Time Approx. 5 h
Service Life 300 times ＞ 80%
General Parameters
Display screen 3.5-inch TFT
Language English, Chinese
Auto Power OFF Function Power off automatically upon no operations: 5 min / 10 min / 15 min / 30 min / never
Screen Brightness 0 – 100%
Lock Screen Lock screen upon no operation:

5 min / 10 min / 15 min / 30 min / never
Memory latest 4 groups testing parameters
Communication mode Optical fiber
Grounded Port 4mm banana plug
Dimension 285 mm × 85 mm × 245 mm
Weight Approx.1.25kg(Incl. battery)
Ambient Temperature 15 ℃ – 35℃
Relative humidity 30% – 75% (no condensation)
Atmospheric pressure 86 kPa ~ 106 kPa
