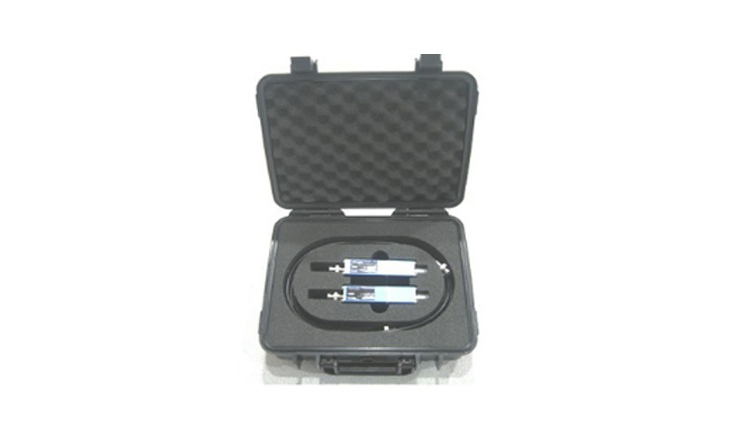

TFB 500/1000 are attenuators, capable of reducing the power of EFT/B without appreciably distorting its waveform. The calibration kit is used to calibrate EFT/B generators regularly to ensure the performance and accuracy of the testing system. It is compatible with most EFT/B generators.
| Technical Parameters | |
|---|---|
| Peak Voltage | Max 8 kV |
| Average Power | 4 W |
| Attenuation | 54 dB (TFB 500),
60 dB (TFB 1000) |
| Nominal Voltage Ratio | 500 dB (TFB 500),
1000 dB (TFB 1000) |
| Impedance | TFB 500: input 50 Ω, output 50Ω;
TFB 1000: input 1,000 Ω, output 50 Ω; |
| Pulse Voltage | Max 8 kV; |
| -3 dB Bandwidth | 400 MHz |
| Input Terminal | BNC (male) |
| Output Terminal | BNC (male) |
| General Parameters | |
| Dimension | 131 × 25 × 25 mm |
| Operating Temp. | 15℃ – 35℃ |
| Weight | Approx 140 g |
| Operating Humidity | 45% – 75% |
| Operating Air Pressure | R 150 T86 – 106 kPa; |
