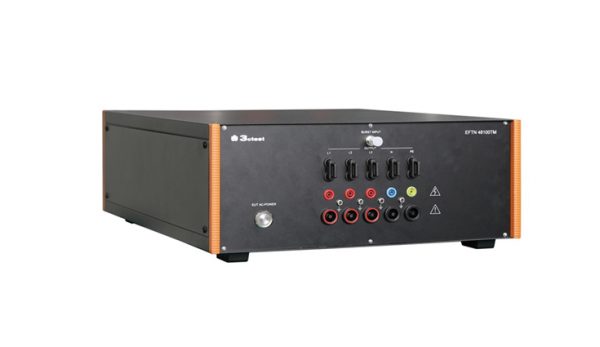

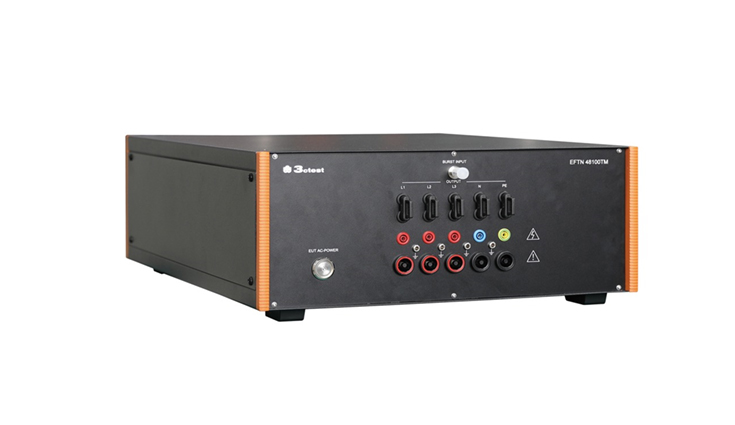

EFTN 48100TM Manual three-phase coupling/decoupling network is meeting IEC 61000-4-4 requirements, and has the characteristics of good reliability, stable performance and convenient use. Maximum EUT load capacity: AC 480 V, 100 A.
| Technical parameters | |
|---|---|
| EUT supply voltage | MAX 480 VDC |
| EUT current | MAX 100 A |
| Burst voltage | MAX 4 kV |
| Coupling path | L1, L2, L3, N, PE any line coupling |
| Coupling switching
mode |
Manual |
| Coupling capacity | 33nF |
| Residual pulse voltage at the injection of EUT | Less than 10% of test pulse voltage |
| Grounding mode | 4mm banana line |
| Burst INPUT port | Coaxial cable |
| EFT INPUT mode | Single or multi-line simultaneous injection |
| General Parameters | |
| Cabinet size | 4U 450×192×610 mm |
| Weight | Approx.35 kg |
| Ambient Temperature | 15 ℃ ~ 35 ℃ |
| Relative Humidity | 45% ~ 75% |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
Model：INS 800
The INS 800 high-frequency noise simulator is designed to simulate the interference generated when the relay is turned on or off as a representative of the inductive component.
Model：INS 800
The INS 800 high-frequency noise simulator is designed to simula
...

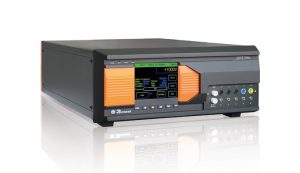

Model：EFT 800x
EFT 800x series including EFT 800G(source output), EFT 800S (built-in single-phase coupling/decoupling networks) and EFT 800T (built-in three-phase coupling/decoupling networks) are newly designed intelligent EFT/Burst simulators.
Model：EFT 800x
EFT 800x series including EFT 800G(source output), EFT 800S (bu
...
Model：EFT 500G / EFTN 15100T
The HV high-power EFT/burst immunity test system EFT/500G& EFTN 15100T is a high-end test device, which is specially designed to meet the requirement of new energy test system and EUT with high-power load.
Model：EFT 500G / EFTN 15100T
The HV high-power EFT/burst immunity test system
...
Model：CCC 100
Capacitance coupling clamp CCC 100 will couple EFT/Burst to I/O lines as per Europe and international immunity test standards. Discrete capacitors can’t couple interference signal flow.
Model：CCC 100
Capacitance coupling clamp CCC 100 will couple EFT/Burst to I/O
...
