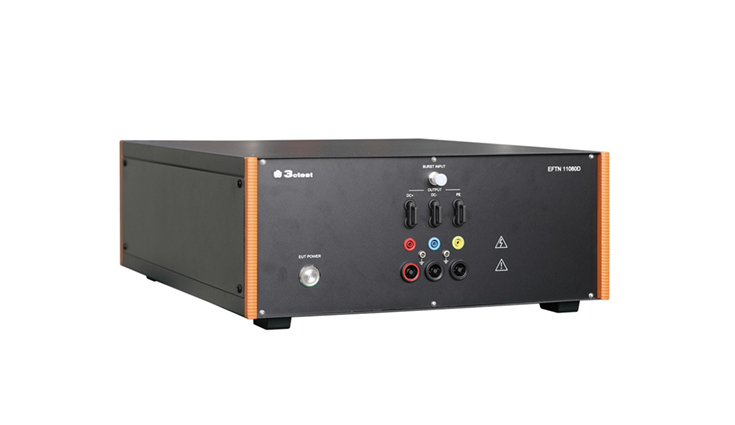

EFTN 11080D Manual coupling/decoupling network is meeting IEC 61000-4-4 requirements, and has the characteristics of good reliability, stable performance and convenient use. Maximum EUT load capacity: DC 1100 V, 80 A.
| Technical parameters | |
|---|---|
| EUT supply voltage | MAX 1100 VDC |
| EUT current | MAX 80 A |
| Burst voltage | MAX 4 kV |
| Coupling path | DC+ , DC- , PE |
| Coupling switching
mode |
Manual |
| Residual pulse voltage at the injection of EUT | Less than 10% of test pulse voltage |
| Grounding mode | 4mm banana line |
| Burst INPUT port | Coaxial cable |
| EFT INPUT mode | Single or multi-line simultaneous injection |
| General Parameters | |
| Cabinet size | 4U 450×192×610 mm |
| Weight | Approx.25 kg |
| Ambient Temperature | 15 ℃ ~ 35 ℃ |
| Relative Humidity | 45% ~ 75% |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
