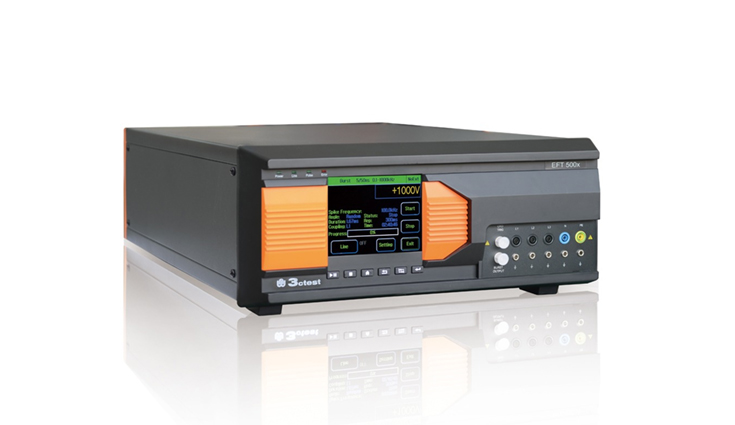

EFT/ Burst Simulator EFT 500x

Model：EFT500x

The EFT 500 series is the multifunctional test simulator for EFT/Burst with a built-in single phase or three phase coupling /decoupling network.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The EFT 500 series is the multifunctional test simulator for EFT/Burst with a built-in single phase or three phase coupling /decoupling network. It is designed to meet the requirements of electronic and electrical standards. Stable performance and good reliability make the EFT 500 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies. With internal automatic single phase or three-phase CDN, it is featured with good reliability, stable performance and easy use.

Features：

  • 5.7-inch color touch screen front panel operation.
  • Internal automatic single phase or three-phase CDN.
  • Programmable setup of test parameters.
  • Controlled external three-phase high current CDN.
  • EFT 500S (single phase network) EFT 500T (three-phase network).
  • Ethernet, RJ45 port for PC remote control, print and documentation.

Standard

  • IEC 61000-4-4
  • IEC 61000-6-2
  • IEC 61000-6-1
  • IEC 61326
  • IEC 61850-3
  • GB/T 17626.4
  • EN 61000-4-4
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 61850-3
  • EN 61326
  • ANSI/IEEE C62.41

Specifications

General Parameters
Display screen 5.7 inch TFT color touch screen
Working mains AC 110 V/220 V，±10%，50/60 Hz，±5%（default AC 220V 50 Hz
Fuse 6 A
Power

consumption

 200 W
Memory space Infinite（PC)
Communication mode Ethernet, RJ45
External trigger input BNC, 5 V TTL
Operation control input BNC, 5 V TTL
Failure detection LCD front panel display and Interrupt instrument work
Working indicator LED, LCD front panel display
Grounding mode Flat ground wire
Size 19 inch /4 U
Weight Approx. 23 kg
Temperature 15 ~ 35 ℃
Humidity 45% ~ 75%
Air pressure range 86kPa ~ 106kPa
EFT/Burst test as per IEC 61000-4-4
Burst module
Test voltage 0.25 kV ~ 4.8 kV ±10%
Polarity +/-/alternative
Source impedance 50 ohm
Pulse waveform 5/50 ns, 50 ohm load;

1000 ohm load
Rise time 5 ns±30%, 50 ohm load, 1000 ohm load
Pulse duration 50 ns±30%, 50 ohm load
50 ns ~ 15/+100 ns, 1000 ohm load
Pulse frequency 0.1kHz ~ 1000 kHz
Burst duration 0.001ms ~ 1000ms
Burst cycle 11ms ~ 10100ms
Test duration 1 s ~ 9999 s
Trigger mode Automatic, manual or external
Synchronization 0° ~ 360°, 1° step or random
Network attenuation ratio <10% of setting voltage
network EFT 500S built-in single CDN

AC 250 V/16 A; DC-1 220 V/16 A；

EFT 500T built-in three phase CDN

AC 380 V/16 A; DC-1 220 V/16 A

Download

Adobe PDF

EFT/ Burst Simulator EFT 500x Series Datasheet
