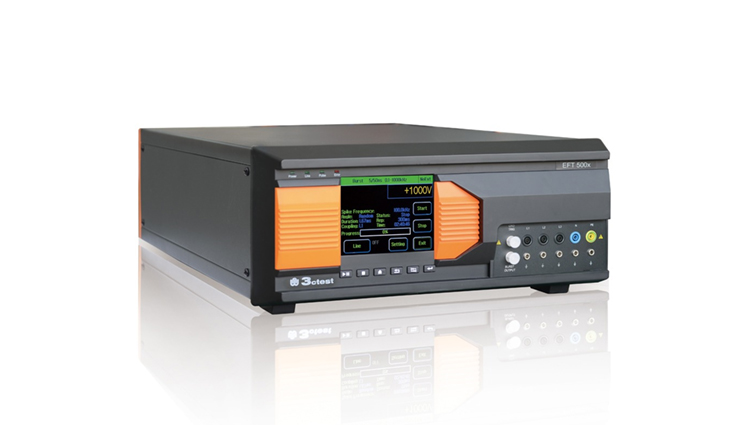

EFT/ Burst Simulator EFT 600x

Model：EFT 600x

The EFT 600 series is the multifunctional test simulator for EFT/Burst with a built-in single phase or three phase coupling /decoupling network.

In Stock 2-3 Weeks

With FREE shipping within the INDIA

In Stock

Enquire Now

Description

The EFT 600 series is the multifunctional test simulator for EFT/Burst with a built-in single phase or three phase coupling /decoupling network. It is designed to meet the requirements of electronic and electrical standards. Stable performance and good reliability make the EFT 600 an optimum standalone solution for both testing during development and final testing of products and sub-assemblies. With internal automatic single phase or three-phase CDN, it is featured with good reliability, stable performance and easy use.

Features：

5.7 inch color touch screen front panel operation
Output voltage can reach 6.0 kV
internal automatic single phase or three-phase CDN
Programmable setup of test parameters
Controlled external three-phase high current CDN
EFT 500S (single phase network) EFT 500T (three-phase network)
Ethernet, RJ45 port for PC remote control, print and documentation

General Parameters
Display screen	5.7 inch TFT color touch screen
Working mains	AC 110 V/220 V，±10%，50/60 Hz，±5%（default AC 220V 50 Hz）
Fuse	6 A
Power consumption	200 W
Memory space	Infinite（PC）
Communication mode	Ethernet, RJ45
External trigger input	BNC, 5 V TTL
Operation control input	BNC, 5 V TTL
Failure detection	LCD front panel display and Interrupt instrument work
Working indicator	LED, LCD front panel display
Grounding mode	Flat ground wire
Size	19 inch /6 U
Weight	Approx. 26 kg
Temperature	15 ~ 35 ℃
Humidity	45% ~ 75%
Air pressure range	86kPa ~ 106kPa
EFT/Burst test as per IEC 61000-4-4
Burst module
Test voltage	0.2 kV ~ 6.0 kV ±10% Calibration voltage for 250 V
Polarity	+/-/alternative
Source impedance	50 ohm
Pulse waveform	5/50 ns, 50 ohm load; 1000 ohm load
Rise time	5 ns±30%, 50 ohm load, 1000 ohm load
Pulse duration	50 ns±30%, 50 ohm load
Pulse duration	50 ns ~ 15/+100 ns, 1000 ohm load
Pulse frequency	0.1 kHz ~ 1000 kHz
Burst duration	0.001ms ~ 1000ms Support number setting
Burst cycle	11ms ~ 10100ms
Test duration	1 s ~ 9999 s
Trigger mode	Automatic, manual or external
Synchronization	0° ~ 360°, 1° step or random
Network attenuation ratio	<10% of setting voltage
network	EFT 600S built-in single CDN AC 250 V/32 A; DC-1 220 V/32 A； EFT 600T built-in three phase CDN AC 690 V/32 A; DC-1 1000 V/32 A
