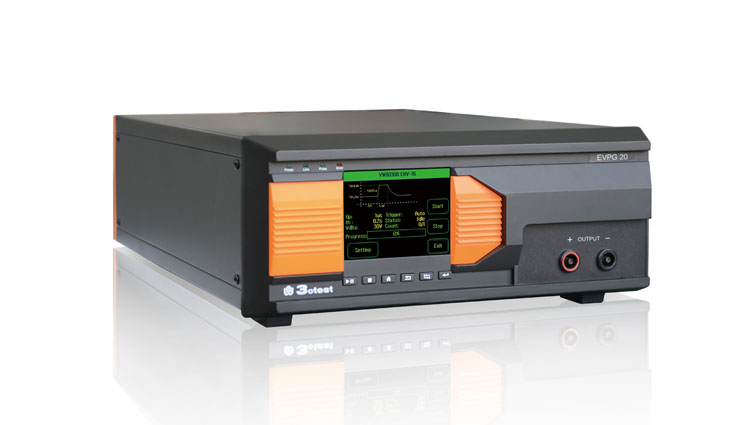

The EVPG 20 is designed as per EHV-10 (load dump with rapid rate of change) and EHV-16 HV pulse specified in VW 80300:2016, which is used in vehicle HV electronic components test. It has 5.7-inch color touch screen for operation and also can be controlled by PC software.
| Technical Parameters | |
|---|---|
| Standard | VW 80300-2016 (EHV-10-2) |
| Waveform Feature | Double Exponential Wave |
| Pulse Voltage | 10 V ~ 50 V, ±20 %
50 V ~ 200 V, ±10 % |
| Pulse Width | ≥50 μs（0 % ~ 0 %) |
| Pulse Rise Time (0 % ~ 100 %) | 6.67 μs±20 %
(3000 V/ms@20 V) |
| Output Impedance | 2 Ω |
| Pulse Interval | 1 ~ 99 s |
| Pulse Polarity | Positive only |
| Counter | 1 ~ 99 |
| Trigger Mode | Manual/Auto/External Trigger |
| Coupling Mode | Capacitor |
| Decoupling Mode | Diode |
| DUT Load | DC 1000 V/100 A |
| General Parameters | |
| Display Screen | 5/7 TFT touch screen |
| Mains Supply | AC 220 V，土10%，50/60 Hz |
| Fuse | 6 A |
| Max.Power Consumption | 200 W |
| Dimension | 4 U |
| Weight | Approx. 25 kg |
| Relative Humidity | 15 ℃ ~ 35 ℃ |
| Ambient Temperature | 45 % ~ 75 % RH
(no condensing) |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
| Standard | VW 80300-2016 (EHV-16) |
| Waveform Feature | Rectangular Wave |
| Pulse Voltage | 10 V ~ 50 V, ±20 %
50 V ~ 200 V, ±10 % |
| Pulse Width | 10 μs ~ 20 μs±20 %
20 μs ~ 200 μs±10 % |
| Pulse Rise Time (0 % ~ 100 %) | ≤300 ns (＜5 V/ns) |
| Output Impedance | 2 Ω |
| Pulse Interval | 0.1 ~ 10 s |
| Pulse Polarity | Positive only |
| Counter | 1 ~ 999 |
| Trigger Mode | Manual/Auto/External Trigger |
| Coupling Mode | Capacitor |
| Decoupling Mode | Diode |
| DUT Load | DC 1000 V/100 A |
