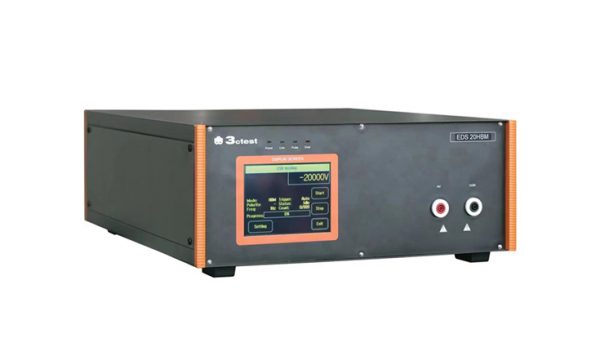

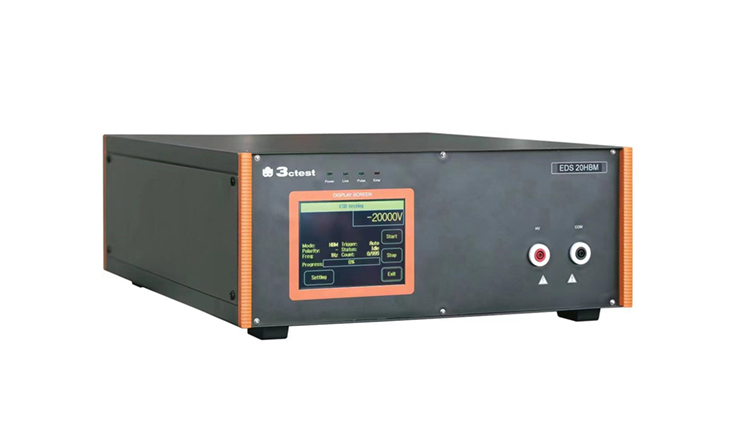

Electrostatic Discharge Generator EDS

Model：EDS 20HBM

EDS 20HBM electrostatic discharge generator is specially designed for the characteristics and requirements of electrostatic discharge immunity test of human body model (HBM).

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

EDS 20HBM electrostatic discharge generator is specially designed for the characteristics and requirements of electrostatic discharge immunity test of human body model (HBM), which can test the electrostatic immunity of semiconductor devices such as LED, transistor and IC. According to the design of charging and discharging circuit of ANSI/JEDEC JS-001-2017 standard, it fully meets the requirements of the most severe electrostatic voltage in the above standards, and the maximum voltage can reach 20KV.

Features：

  • 5.7-inch colorful touch screen.
  • Output voltage can reach 20 kV.
  • Maximum frequency can reach 5 Hz.
  • System has built-in fault alarm function, easy to operate.

Standard

  • ANSI/JEDEC JS-001-2017

Specifications

Technical Parameters
Standard ANSI/ESDA/JEDEC JS-001-2017
Voltage 8 kV ~ 20 kV ±5% ;

Resolution 1 V
RC parameter 100 pF/1500Ω
Polarity Positive 、Negative 、

Positive/ Negative
Pulse count 1 ~ 999
Repetition frequency 0.1 Hz ~ 5 Hz
Trigger mode Automatic/Manual/External
Short current parameters
Peak current Ips 5.33 A ±10% @8 kV

13.35 A±10% @20 kV
Rise time 2 ns ~ 10 ns(10%Ips ~ 90%Ips)
Pulse width 130 ns ~ 170 ns(Ips ~ 38.6%Ips)
Ringing amplitude ＜15%Ips
Load 500Ω current parameters
Peak current Ipr 3.68 A ±10% @8 kV

9.2 A±10% @20 kV
Rise time 5 ns ~ 25 ns(10%Ipr ~ 90%Ipr)
General Parameters
Display screen 5.7-inch TFT
Power Supply AC 110/220 V, ±10%,50 Hz/65 Hz(AC 220 V in China)
Fuse 6 A
Power 400 W
Failure monitoring When it fails, the front panel LCD will display and interrupt the instrument.
Working indication LED indication ,LCD display
Dimension 8U
Weight Approx. 18 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative humidity 45 % ~ 75 %
Atmospheric pressure 86 kPa ~ 106 kPa
