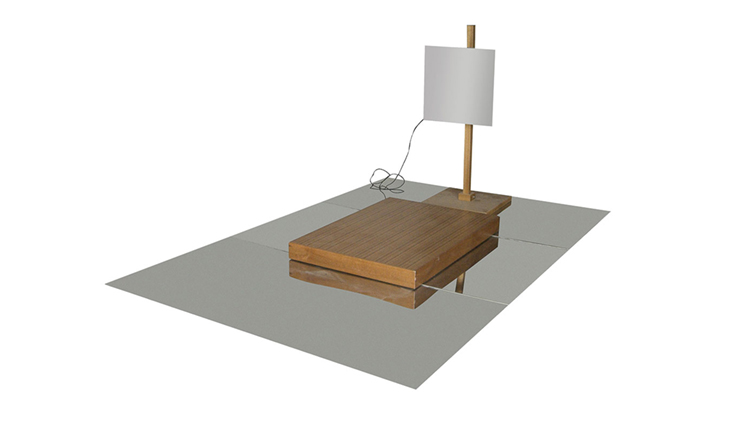

ESDD is specially designed for the laboratory set-up of electrostatic discharge immunity tests for table-top & floor-standing equipment. It is wholly made of hard wood in accordance with IEC 61000-4-2 & GB T 17626.2. It can also be used for EFT/B and attenuation oscillation impulse immunity tests and automotive EMC immunity tests.
| Table-top Type | Floor-standing Type | ||
|---|---|---|---|
| Non-conducting table | 1,600 × 800 × 800 mm | Insulating support | 1100×800×100 mm |
| Ground reference plane | 2,700 × 1,800 × 2 mm | Ground reference plane | 2700×1700×2 mm |
| Vertical coupling board | 500 × 500 × 3 mm | Vertical coupling board | 500×500×3 mm |
| Horizontal coupling board | 1,600 × 800 × 2 mm | Grounding resistor | 470 kΩ×2 |
| Insulating support | 1,600 × 800 × 0.5 mm | / | / |
| Grounding resistor | 470 kΩ × 2 | ||
