Electrostatic Discharge Simulator EDS 30T

Model：EDS 30T

The 30 kV ESD Generator_IEC 61000-4-2 ESD Tester EDS 30T is designed as per EN/IEC 61000-4-2 with output voltage up to 30 kV.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

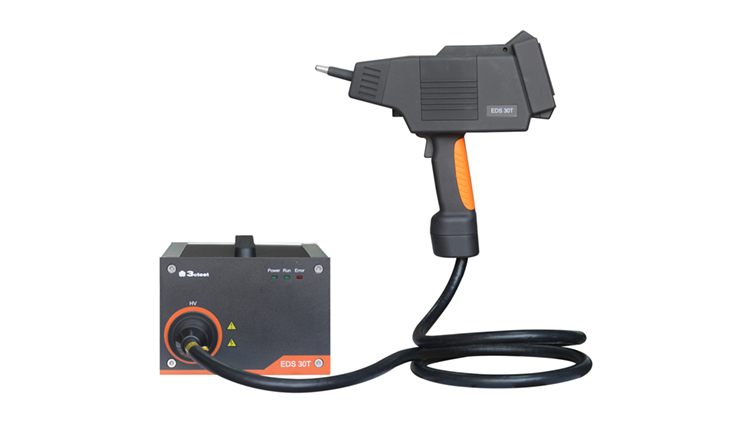

The electrostatic discharge simulator EDS 30T is designed as per EN/IEC 61000-4-2 with output voltage up to 30 kV. With ergonomic design, it integrates discharge tips and touch screen control into one. The EDS 30T features with easy-to-operate touch screen, built-in temperature and humidity meter and changeable RC module, which ensure the reliability in all types of test sites.
AC power or battery box are available for power supply.

Features:

  • Ergonomic design
  • LCD touch screen
  • All-in-one design (no base unit)
  • Changeable R/C networks
  • Automatic polarity switching
  • Battery or mains operation, long battery life
  • Temperature and humidity monitoring
  • Built-in standard test library
  • Intelligent detection the failure of air discharge

Standard

  • Bellcore GR-1089-Core
  • ISO 14304
  • IEC 61000-6-2
  • IEC 61000-6-1
  • IEC 61326
  • IEC 61340-3-1
  • IEC 61000-4-2
  • GB/T 17626.2
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 61326
  • ITU-T K.20

Specifications

Technical Parameters
Contact Discharge 200 V – 30,000 V（±5%）
Air Discharge 200 V – 30,000 V（±5%）
Voltage Step 100 V
Hold Time ＞5 s
Polarity Positive, negative
RC Module Automatic recognition & LCD display
Humidity & Temperature Built-in temperature and humidity meter with functions of record and protection
Repetition Frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Manual / automatic
Pulse 1 – 9,999
Contact Discharge 150 pF / 330 Ω
Rise Time 0.8 ns ± 25%
Quick Start Test Program Simple and easy to reset data online
Evaluation Procedure Contact discharge test at 20 Hz，evaluate the test points of DUT
Standard Test Procedure According to IEC / EN 61000-4-2
General Parameters
Operating Temperature 15 ℃-35 ℃
Operating Humidity 30%-60%
Operating Air Pressure 86 kPa-106 kPa
Working power supply 100 V / 240 V (±10%); 50 / 60Hz;

Default configuration: 220 V, 50 Hz (for Mainland China)
Weight Approx. 12 kg
Weight (EDS gun) Approx. 2 kg

Downloads

Adobe PDF

Electrostatic Discharge Simulator EDS 30T Series Datasheet

Language: English
