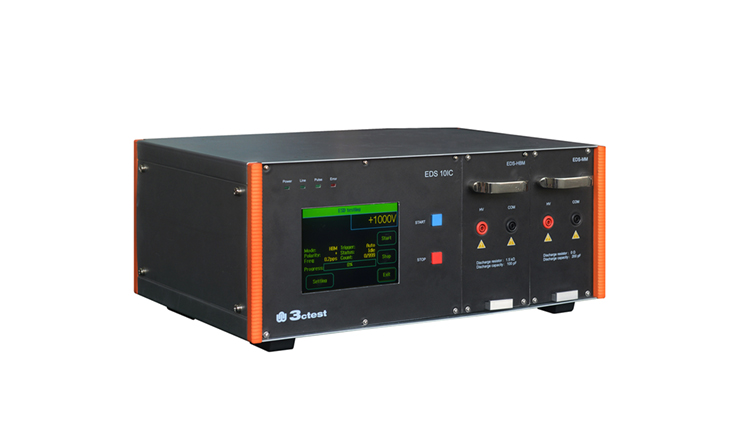

Electrostatic Discharge Simulator (HBM/MM)

Model：EDS 10IC

The electrostatic discharge simulator EDS 10IC is specially designed for HBM and MM ESD immunity test requirements, and applicable to semiconductor devices like LED, transistors, IC, etc.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The EDS 10IC is specially designed for HBM and MM ESD immunity test requirements, and applicable to semiconductor devices like LED, transistors, IC, etc. in accordance with IEC, ESDA, JEDEC, MIL, etc. as well as fully complies with the severest ESD voltage levels in the standards above.

Features:

  • New third-generation control platform and touch screen intelligent operation;
  • The lowest voltage 5 V and 1 V step for precise adjusting voltage;
  • Capable of performing single/ automatic discharging tests. Testing parameters such as times, frequency etc. can be set;

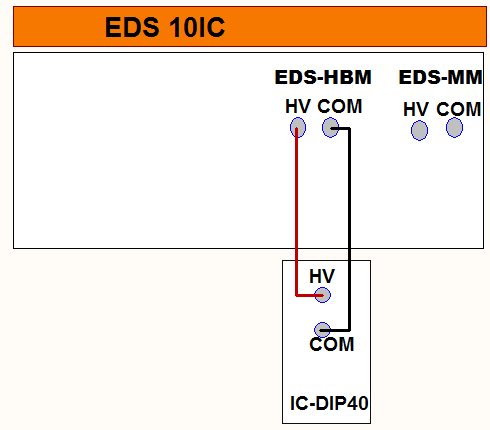

Test connection diagram 1  EDS-HBM：

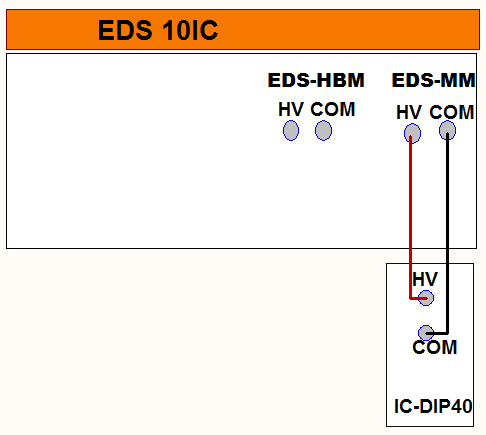

Test connection diagram  2  EDS-MM:

Standard

  • Human Body Model (HBM)
  • Machine Model (MM)
  • ESDA ANSI/ ESD STM5.2-2009
  • JEDEC JESD22- A114E Jan.2007
  • ANSI /ESD-STM5.1 2007
  • MIL-STD-883G 28 Feb.2006
  • ANSI/JEDEC JS-001-2010
  • JEDEC JESD22- A115C Nov.2010

Specifications

Technical Parameters
HBM Short Circuit Current Parameters
Discharge Capacitor 100 pF
Discharge Resistance 1500 W
Pulse amplitude 5~8000V(5%±5V)
Peak Current Ips 0.17 A ±10% @250 V

0.33 A ±10% @500 V

0.67 A ±10% @1000 V

1.33 A ±10% @2000 V

2.67 A ±10% @4000 V

5.33 A ±10% @8000 V
Rise Time 2 ns ~10 ns
Pulse Width 150 ns + 20 ns
Ringing Amplitude <15% peak current
HBM 500 Ω Resistor Current Parameters
Peak Current Ipr 375 mA ~550 mA @ 1000 V

1.5 A ~2.2 A @ 4000 V
Ipr/Ips ≥ 63%
Rise Time 5 ns ~25 ns
MM Short Circuit Current Parameters
Discharge Capacitor 200 pF
Discharge Resistance 0 W
Pulse amplitude 5~1000V (5%±5V)
Peak Current Ip1 0.44 A ±20% @25 V

0.88 A ±20% @50 V

1.75 A ±10% @100 V

3.5 A ±10% @200 V

7.0 A ±10% @400 V
Ip2/Ip1 67%~90%
Cycle 66 ns ~90 ns
MM 500 Ω Resistor Current Parameters
Peak Current Ipr 0.85 A ~1.2 A @ 400 V
100 ns Current Value I100 0.23 A ~0.40 A @ 400 V
I200/I100 30%~55%
General Parameters
Output Voltage HBM 5 ~ 8000 V (5%+5 V)

MM 5 ~ 1000 V (5%+5 V)
Polarity +/-/alternate
Frequency 0.1 Hz~5 Hz
Trigger Times 1~999
Trigger Mode Auto/ Manual/ external trigger
Input Power Supply AC 100 V~240 V, ±10%

50 Hz/60 Hz
Ambient Temperature 15℃~35℃
Storage Temperature -10℃~50℃
Relative Humidity 25%~75%
Dimension 450 mm（L）x190 mm（W） x320 mm（H）
Weight 10 kg

Downloads

Adobe PDF

Electrostatic Discharge Simulator (HBM/MM) Series Datasheet

Language: English
