ESD Calibration Set ESD-CALA

🔍

Model：ESD-CALA

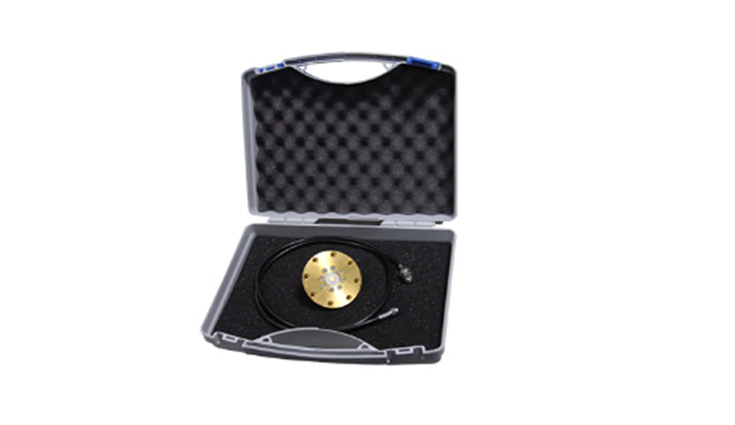

ESD Calibration set ESD-CALA is composed of calibration target BX602, coaxial line and adapter. BX602 is coaxial current target and designed as required by IEC/EN 61000-4-2 ed.2.

In Stock 2-3 Weeks

  With FREE shipping within the INDIA

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

ESD-CALA is composed of calibration target BX602, coaxial line and adapter. BX602 is coaxial current target and designed as required by IEC/EN 61000-4-2 ed.2, which is used to monitor and judge whether the EDS pulse waveform output by ESD generators could meet the requirement of regulation or not. The additional attenuator (JZ602 or JZ603) is used for matching the output signal with the input capability of the oscilloscope

Features

  • Meet the requirement of IEC61000-4-2 :2008
  • 2 Ω impedance (± 5%)
  • Test voltage up to 30 kV
  • Insertion loss ± 0.5d B at 1 GHz
  • Insertion loss ±1.2 dB at 4 GHz
