ESD Field Coupling Fixture EDS-CM

Model：EDS-CM

The ESD Field Coupling Fixture EDS-CM is designed in accordance with ISO 10605(Annex F) and GB/T 19951.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

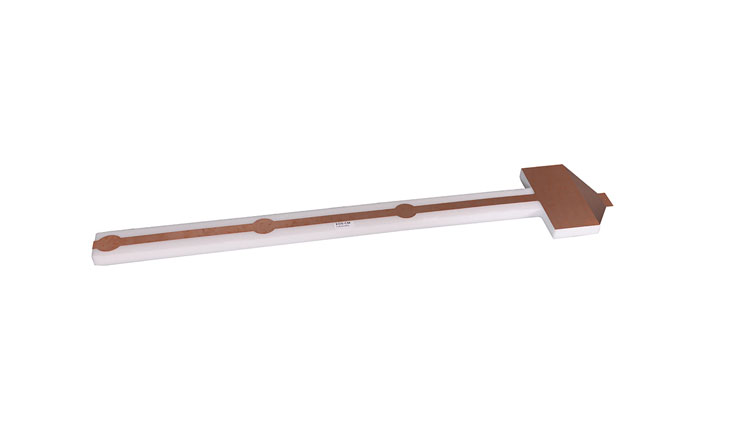

The EDS-CM is designed in accordance with ISO 10605(Annex F) and GB/T 19951. Its field coupling plane and discharge island can be used to conduct direct discharge and indirect discharge tests.

Features：

  • Capable of conducting direct discharge and indirect discharge tests;
  • High repeatability for test;

Standard

  • ISO 10605
  • GB/T 19951

Specifications

Technical parameters
Dimension of Field Coupling Plane 170 mm × 360 mm
Material of Field Coupling Plane Copper, 1.0 mm thick
Field Coupling Strip Width 40 mm
Discharge Island φ 80 mm
Non-conductive Module εr less than 2.5, 50 mm height
Weight Approx. 1.6 kg
