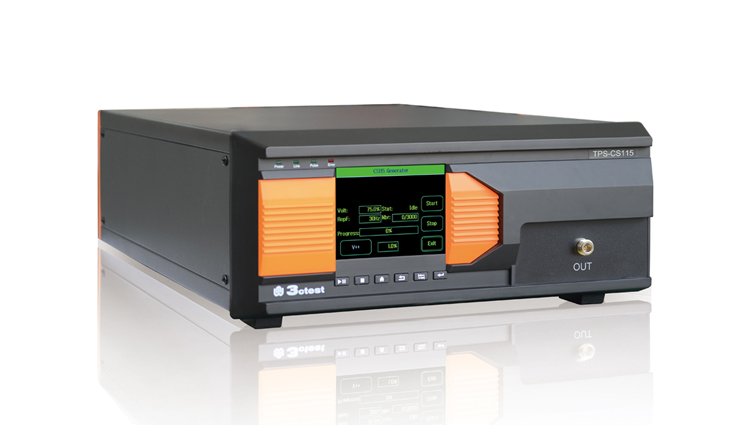

Fast Square Wave Pulse Generator TPS-CS115

Model：TPS-CS115

TPS-CS115 Fast Square Wave Pulse Generator is specially designed to meet MIL-STD-461E/F/G CS115, GJB 151A-97 CS115 and GJB 151B-2013 CS115.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

TPS-CS115 Fast Square Wave Pulse Generator is specially designed to meet MIL-STD-461E/F/G CS115, GJB 151A-97 CS115 and GJB 151B-2013 CS115. This generator can produce fast square wave pulse, used for all interconnection cables and power cables conduction susceptibility tests of aircrafts, space and surface system. This equipment is applicable for warships and subsystem tests if the purchaser requires.

Features:

  • 5.7inch touch screen front panel operation;
  • Compliance with MIL-STD-461 E/F/G CS115, GJB 151A-97 CS115 and GJB 151B-2013 CS115;
  • Easy operation;

Standard

  • GJB 151A-97 CS115
  • GJB 151B-2013 CS115
  • MIL-STD-461 E/F/G CS115

Specifications

Technical Parameters
Max. test current ≥5 A

（loop impedance 100 Ω）
Repetition frequency 1 Hz ~ 35 Hz
Rise time（10%-90%） ≤2 ns
Fall time（90%-10%) ≤2 ns
Pulse width（90%-90%） ≥30 ns
Output impedance 50 W
Output interface N-k
General Parameters
Power supply AC 110/220 V，土10%，50-60 Hz

(AC 220 V for China mainland)
Environment humidity 45%-75% RH（no condensation）
Relative humidity 15-35 ℃
Size 19inch/4U
Weight Approx.18.5 kg
