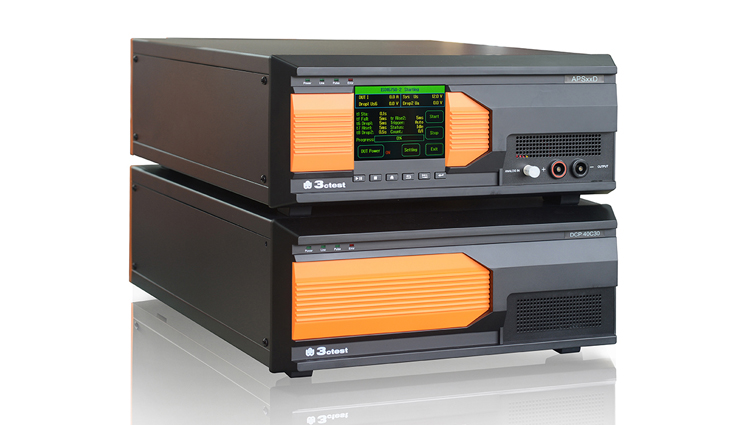

Four Quadrant Battery supply simulator

The APS xxD series are equipped with a four-quadrant bipolar amplifier, which is capable of generating voltage dips, short interruptions and multiple voltage variations phenomenon and simulating various voltage variation phenomenon tested and obtained on wiring harness. It can be used as battery supply simulation and DC voltage source. During testing in test lab, APS xxD series can replace vehicle battery. Pulse 2b, Pulse 4, sine wave noise and other complicated voltage variation tests can be conducted by APS xxD series simulator, which is greatly suitable for conductive transient tests in accordance with standard ISO 7637/16750. It can simulate multiple battery supply waveforms as per international standards and multiple automotive manufacture standards. Meanwhile, as a powerful DC source, it can supply power for DUT during automotive transient pulse test, which covers all four supply voltage categories (48 V, 42 V, 24 V and 12 V).



Features:

•  5.7” color touch screen
• Testing voltage up to 80 V
•  Testing current up to 100 A
•  Four-quadrant bipolar amplifier
•  Powerful DC voltage source
•  High impulse current capacity
•  Automatic voltage drop compensation
•  Bandwidth up to 300 kHz
• Low output impedance
•  Built-in waveform generating modules
• Amplification of external simulated input waveform
•  Conform to voltage variation testing level requirement as per ISO 16750-2 and Pulse 4 and P 2b testing requirement as per ISO 7637-2.
•  Pre-programmed test routines to simulate various power supply waveforms
•  Simulate various power supply waveforms, e.g. superimposed noise
•  Ethernet and RJ45 port for PC remote control and test report documentation and print

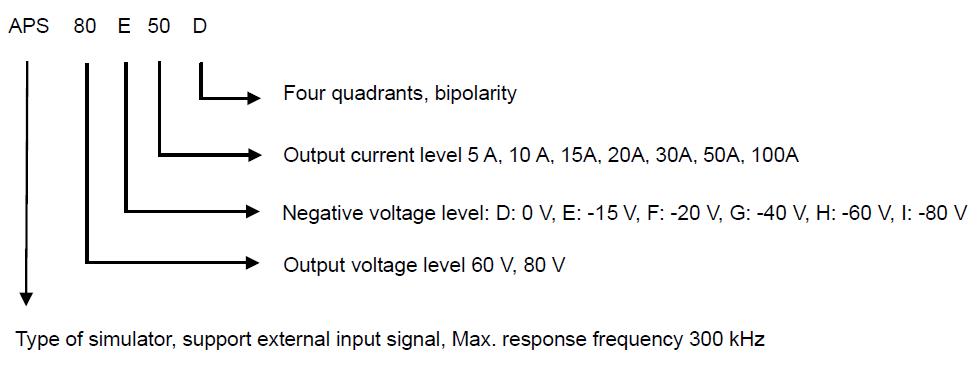

Naming Rules:

*） For some of the devices under test (e.g. motor equipment, exhaust fans, wipers, air conditioners, etc.) or DUTs with large capacitive storage accessories, there is a large amount of inrush current. This inrush current is 3-10 times of normal current or even greater. If customers can’t decide inrush current value, our company’s CTM series current test modules can be used to test the working current value, so that you can choose a more appropriate APS series of products.

**) APGxx series   Unipolarity output voltage range of the APS is 0 to 60 V and the output current range is 0 to 400 A.
The Max output frequency of sinusoidal signal is 30 kHz；Its power consumption is large enough to meet most of the test requirements

APSxx series   Unipolarity output voltage range of the APS is 0 to 60 V and the output current range is 0 to 30 A. The Max output frequency of sinusoidal signal is 30 kHz；

APSxxD series is a four-quadrant power supply. The maximum output voltage of the product is 80 V. The product line meets the 48 V test system. The sinusoidal signal output frequency up to 300 kHz.

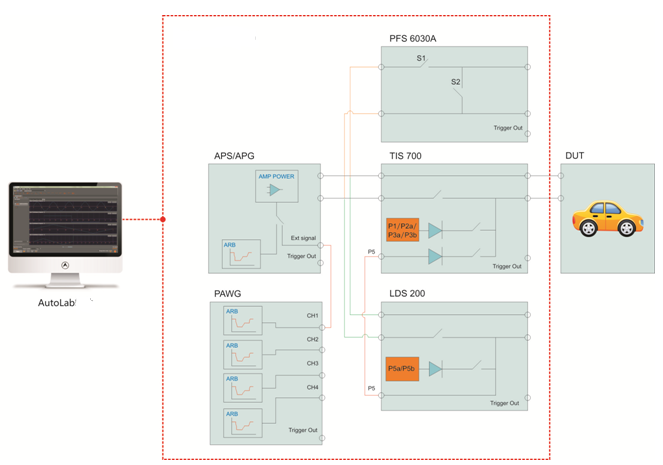

The test connection diagram:
