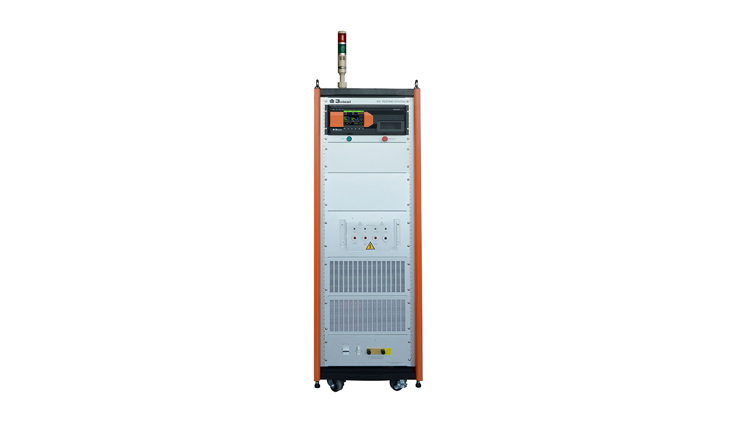

Fully Automatic Multifunctional Compact

Model：CWS 1500

The CWS series fully automatic multi-functional surge immunity testing systems are designed based on 3ctest’s latest third-generation intelligent programmable testing platform.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The CWS series fully automatic multi-functional surge immunity testing systems are designed based on 3ctest’s latest third-generation intelligent programmable testing platform. They feature application of programmable controller and computer technology, simplified system structure, greatly improved system reliability; color touch screen, friendly human-machine interface; easy test setting, one-key automatic testing. The product has the advantage of highly integration, control intelligentization, user-friendly operation and saving testing time.

Features

  • 5.7” color touch screen front panel.
  • Automatic fault detection, audible-visual alarms.
  • Wide range output, voltage up to 500 V.
  • LAN communication interface for remote control.
  • Automatic CDNs are available optionally.
  • Current and voltage two-way peak detection.
  • 19” standard rack.

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • GB/T 16927.1
  • ITU T K.44
  • ITU-T K.21

Specifications

Combination Waveform（1.2/50 μs & 8/20 μs）
Open-circuit Voltage
Peak Voltage 500 V ～15 kV（±10％）
Front Time 1.2 μs (±30%)
Duration Time 50 μs(±20%)
Short-circuit Current
Peak Current 250 A～7.5 kA(±10%)
Rise Time 8 μs (±20%)
Duration Time 20 μs(±20%)
Virtual Impedance 2 Ω±0.25 Ω
Output Polarity Positive/Negative
CDNs（Built-in/Externally） Single/three-phase fully automatically CDNs are available optionally.
Voltage Waveform（1.2/50 μs）
Output Voltage 500 V ～15 kV（±10％）
Output Impedance 500 Ω±10％
Output Polarity Positive/Negative or positive first and negative second
Output Voltage Waveform 1.2 μs±30%，50 μs±20%
Communication Waveform（10/700 μs
Output Voltage 500V～10kV ±10%
Output Polarity Positive/Negative
Output Voltage Waveform 10/700（±20%）μs
Output Current Waveform 5/320（±20%）μs
Output Impedance 15 Ω, 40 Ω（25 Ω+15 Ω）
Output Short-circuit Current 12.5 A～250 A（±10%）
CDNs（Externally） 2-way 4-line and 4-way 8-line CDNs are available optionally.
General Parameters
Working Power Source AC 110 V/220 V (±10%)，50/60 Hz (AC 220 V in Mainland China)
Ambient Temperature 15 ℃-35 ℃
Relative Humidity 45%-75%
Atmospheric Pressure 86 kPa-106 kPa
Grounded Resistance Not exceeding 0.5 Ω
Dimension 19” /35 U（600 mm×800 mm×1850 mm）
Weight Approx. 200kg

Downloads

Adobe PDF

Fully Automatic Multifunctional Compact Wave Simulator CWS1500 series Datasheet

Language: English
