GW Instek LCR-8230A up to 30 MHz LCR Meter

Description

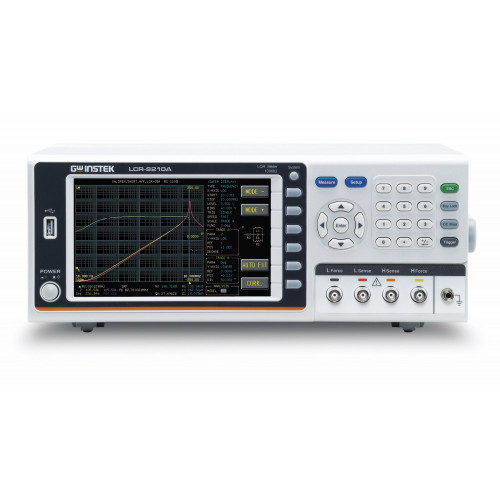

GW Instek LCR-8230A DC, 10Hz~30MHz High-Frequency LCR Meter with Equivalent Circuit Model Analysis

Features:

• Wide Test Frequency DC, 10Hz~50/30/20/10/5 MHz
• 7″ LCD color Display
• 0.08% Basic Accuracy
• Displaying Four Measurement Results Simultaneously From 17 Selectable Measurement Parameters Freely
• 15 Steps List Measurement
• Two Curves Sweep Mode
• Equivalent Circuit Model Analysis
• Internal DC Bias Voltage ±12V
• USB Storage Available
• ALC Function Available
• Standard Interfaces: RS-232C, USB Host/Device, LAN, GPIB and Handler
• Universal Power Input

What’s in the box:

Safety Sheet x1, CD x1 (User manual), Power cord x1, LCR-06B x1

Option

LCR-DB1 DC Bias Voltage Box (up to 200V)

Optional Accessories:

• LCR-05A Test Fixture for axial & radial leaded components (up to 50MHz)
• LCR-06B Test Lead with Kelvin clip (4 wire type)
• LCR-07 Test Lead with Alligator clip (2 wire type)
• LCR-08 Test Fixture (Tweezers) for SMD/Chip components
• LCR-10A Test Fixture for Bottom Electrode components (up to 50MHz)
• LCR-12 Test Lead with Kelvin clip (4 wire type)
• LCR-15A Test Fixture for SMD/Chip components (up to 50MHz)
• GTL-234 RS-232C Cable
• GTL-246 USB Cable
• GTL-248 GPIB Cable
• GRA-445 Rack Mount Kit (19″, 4U)

GW Instek launches a new series of high-frequency LCR meter ~ LCR-8200(A), which has five models and the maximum test frequency is up to 50MHz. The entire series adopts 7-inch color display and features a high measurement accuracy (0.08%).

The measurement results can be presented numerically or graphically according to the selected measurement mode, allowing users to optimally interpret the characteristics of the DUT. At the same time, a full range of standard interfaces such as USB device / RS-232C / Handler and GPIB allow users to control the instrument by the most familiar interface without worrying about additional hardware investment costs.

Furthermore, the series also provides USB storage function when operating in the graphics mode. The measured characteristic curves and values of the DUT are saved for subsequent analysis. The wide variety of features of the LCR-8200(A) can help users easily respond to the test requirements of passive components in R&D, engineering, and production.
