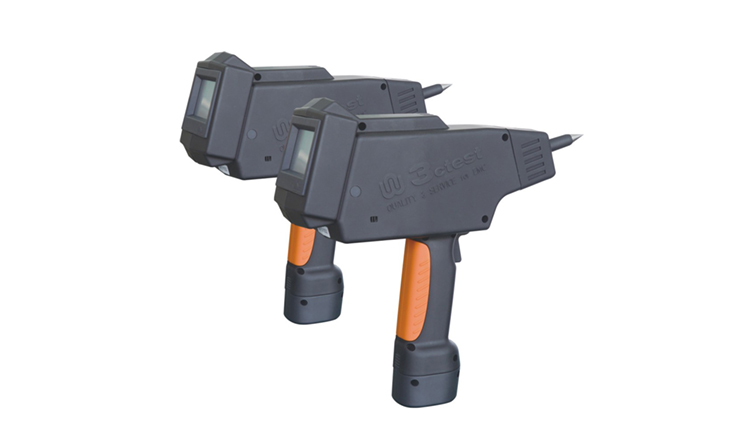

Handheld Electrostatic Discharge Simulator

Model：EDS 20H

The ESD Simulator Guns EDS 20H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Electrostatic discharge between human body and a metal object or between metal objects can reach up to thousands of volts, which may cause malefactions or damages to connected electrical equipment and devices.
The ESD Simulator Guns EDS 20H is the state-of-art handheld ESD generator, and the first of its kind independently researched and developed in China. It is designed according to IEC/EN 61000-4-2 with ergonomic design, integration design, battery powered and mains powered via an adaptor. It boasts easy touch screen operation, safe operation with temperature and humidity monitoring, and stable operation suitable from different testing occasions.

Features:

  • Ergonomic design.
  • LCD touch screen.
  • All-in-one design (no base unit).
  • Changeable R / C networks.
  • Automatic polarity switching.
  • Long battery life for continuous tests.
  • Temperature and humidity monitoring.
  • Built-in standards library.
  • Intelligent detection of air discharge failure.

Standard

  • Bellcore GR-1089-Core
  • ISO 14304
  • IEC 61000-6-2
  • IEC 61000-6-1
  • IEC 61326
  • IEC 61340-3-1
  • IEC 61000-4-2
  • GB/T 17626.2
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 61000-4-2
  • EN 61326
  • ITU-T K.20

Specifications

Technical Parameters
Contact Discharge 1 kV – 20 kV（±5%）
Air Discharge 1 kV – 20 kV（±5%）
Voltage Step 100 V
Hold Time ＞5 s
Polarity Positive, negative
RC Module LCD display
Humidity &Temperature Built-in hygrothermograph, for recording and protection
Repetition Frequency Single / 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 / 20 Hz
Trigger Mode Manual / automatic
Pulse 1 – 9,999
Contact Discharge 150 pF / 330 Ω
Summary Procedure Test according to different standard levels
Rise Time 0.8 ns ± 25%
Quick Start Test Program Simple and easy to reset data online
Evaluation Procedure Contact discharge test at 20 Hz，evaluate the test points of DUT
Standard Test Procedure According to IEC / EN 61000-4-2
General Parameters
Operating Temperature 15 ℃-35 ℃
Operating Humidity 30%-60%
Operating Air Pressure 86 kPa-106 kPa
Operating Power 100 V / 240 V (±10%); 50 / 60Hz;

Default configuration: 220 V, 50 Hz (for Mainland China)
Weight Approx. 8.5 kg
Weight (EDS gun) Approx. 1.8 kg

Downloads

Adobe PDF

Handheld Electrostatic Discharge Simulator EDS 20H Series Datasheet

Language: English
