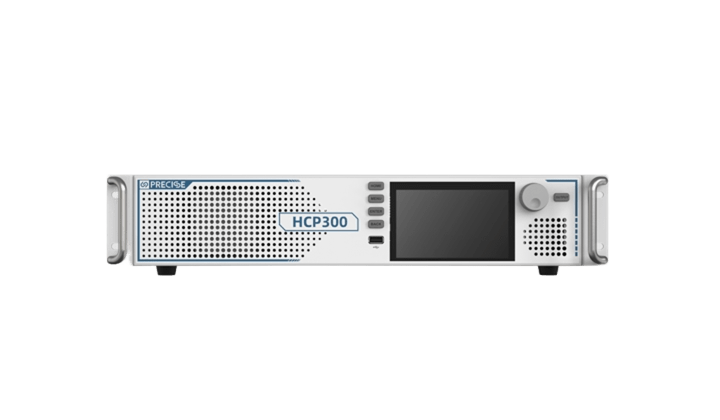

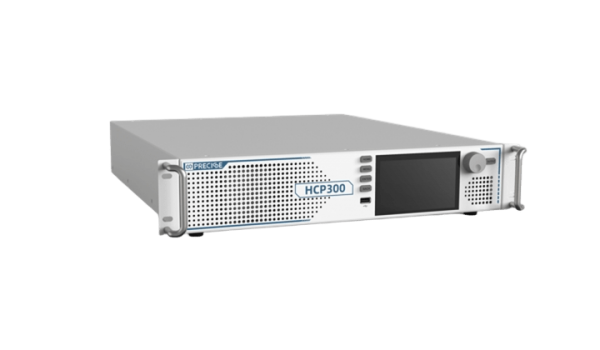

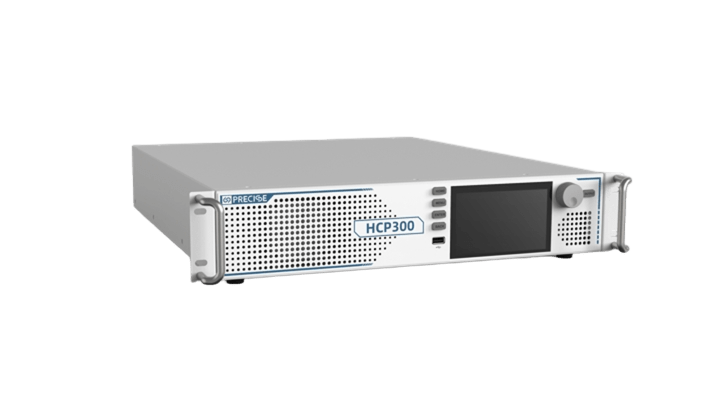

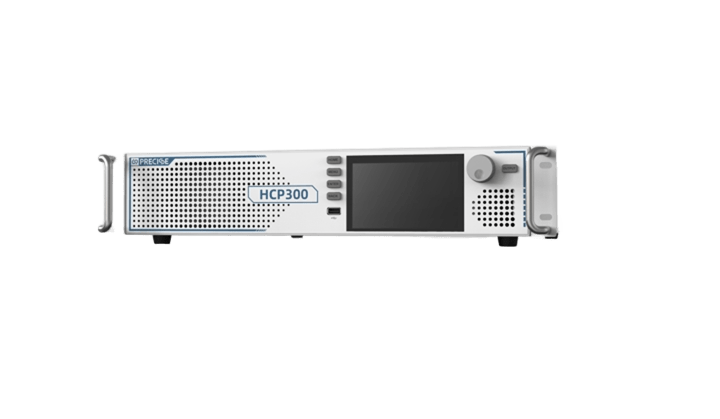

HCP Series High Current Pulse Source Measure Unit

HCP high-current desktop pulse source measure meter has DC and pulse output capabilities, the maximum pulse output current is 100A, the maximum output voltage is 100V, supports four-quadrant operation, and the output and measurement accuracy can reach 0.1%. It can be widely used in power MOS testing, Schott Base diode test, rectifier bridge stack test and solar cell test, etc.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

  • DC and pulse output
  • Maximum pulse output current 100A
  • Maximum output voltage 100V

Specifications

Model Source Accuracy Measurement Accuracy Maximum power Minimum Voltage Maximum Voltage Minimum Current Range Maximum Current Range
HCP100 0.1% 0.1% 300W 300mV 50V 100nA 30A
HCP200 0.1% 0.1% 300W 300mV 50V 100nA 50A
HCP300 0.1% 0.1% 300W 300mV 100V 100nA 100A
