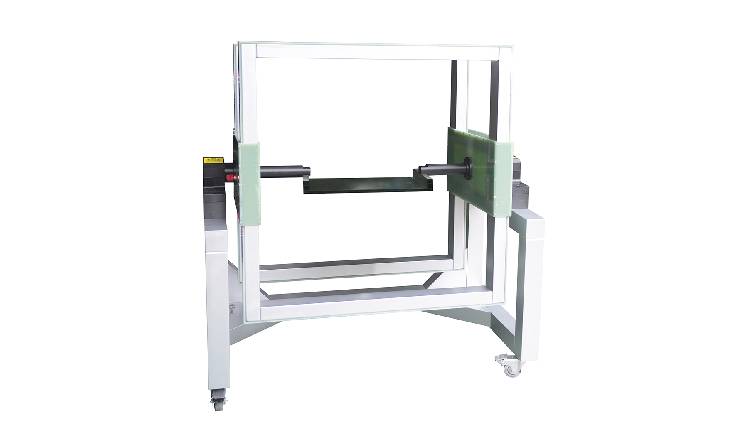

Helmholtz Coil TCXH 1110

Model：TCXH1110

Helmholtz coil is designed to produce standard magnetic field with wide applications.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Helmholtz coil is designed to produce standard magnetic field with wide applications. It can be used to calibrate Hall probe and different types of magnetometers, compensate geomagnetic field, judge magnetic shielding effect, measure radiated magnetic field and research material magnetic properties. It is featured with open space, easy to use, good linearity between magnetic field and supply current and broad uniform area for magnetic space. It can meet the requirements of IEC61000-4-8, GB/T17626.8, GB/T17215-2002 and GB/T15283-94. One-dimension, two-dimension and three-dimension combined magnetic field can be made according to needs.

Features:

  • 90°/180° rotation for direction
  • Internal test table for EUT
  • Continuous work, good reliability of output magnetic strength
  • Compatible AC/DC mains
  • Broad uniform area for magnetic field space
  • Good linearity between magnetic and current

Standard

  • IEC 61000-4-8
  • GB/T 17626.8
  • GB/T17215
  • EN 50121-4

Specifications

Technical Parameters
Magnetic Strength 1 A/m ~ 1000 A/m
1.25 μT ~ 1500 μT
Magnetic Direction 90°/180°
Test Duration 1-100 A/m continuous (1-400 A/m optional)
100-1000 A/m (1-10 s for a short time)
Coil Turns Number of turns
Coil Size 1000 mm (length) × 1000 mm (width) × 540 mm (space)
Temperature 15-55 ℃
Dimension 1540 × 1440 × 1040 mm
Weight Approx. 135 kg

Downloads

Adobe PDF

Helmholtz Coil TCXH 1110 Series Datasheet

Language: English
