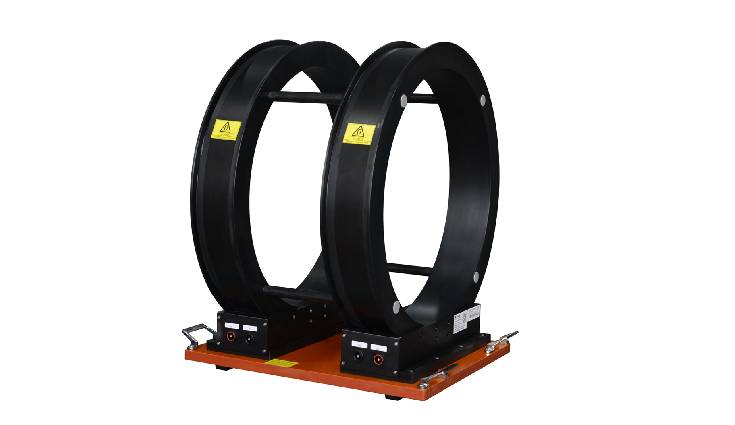

TYXH 06400 is used to produce d.c and alternating magnetic field from DC to 30 kHz together with appropriate signal source and compensation networks. Featured with large experimental area and good magnetic field uniformity, it can satisfy magnetic field susceptibility test requirement of various standard with frequency less than 30 kHz.
| Technical Parameters | |
|---|---|
| Total Coil Turns | 120 (60 × 2) |
| Max. Coil Current | 30 A, 5 min |
| Standard Current | 20 A, continuous |
| Max. Magnetic Field Strength | 4260 A/m @ 30 A, 5 min |
| Standard Magnetic Field Strength | 2856 A/m @ 20 A, continuous |
| Coil Factor | 43.1 dB A/m |
| Coil Diameter | 600 mm |
| Frequency Range | DC – 30 kHz |
| Coil Total Inductance | ≤ 10 mH |
| DC Resistor | ≤ 1 Ω |
| Interface Type | 4 mm banana plug |
| Working Temperature | 0 ℃ ~ 65 ℃ |
| Weight | 45 kg |
