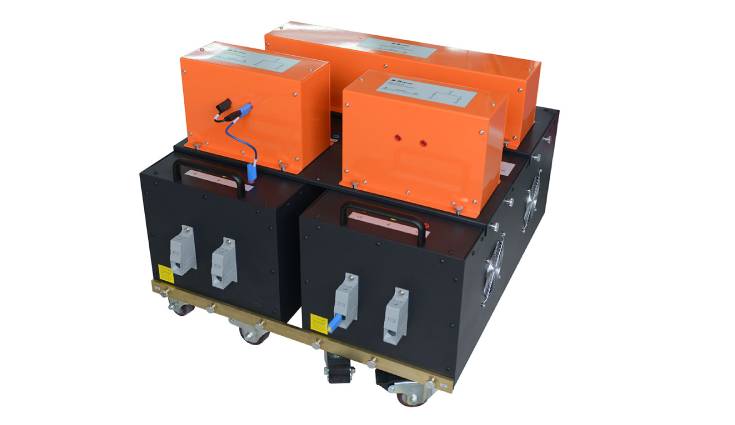

High Power Lightning surge coupling

Model：SPN 38200TM

Manual coupling/decoupling network SPN 38200TM, It can form an electromagnetic compatibility test system with CCS series and CWS series instruments.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Manual coupling/decoupling network SPN 38200TM, It can form an electromagnetic compatibility test system with CCS series and CWS series instruments. According to the needs of customers, it can be compatible with other brands of EMC test instruments. This equipment is specially used for field test of large equipment.

Features：

  • EUT MAX load capacity: AC 380 V
  • Maximum current can reach 200 A
  • Built-in thermometer
  • As per EN/IEC 61000-4-5
  • Used for field test of large equipment
  • Compatible with other brands of EMC test instruments

Standard

  • IEC 61000-4-5
  • GB/T 17626.5
  • EN 61000-4-5

Specifications

Parameters
Test voltage MAX 8 kV(1.2/50μs)

Note: The actual output lightning surge voltage value depends on the set value of surge generator
Test current MAX 4 kA(8/20μs)
phase synchronization L1、L2、L3、N、PE, Phase angle superposition of arbitrary lines
Coupling Paths Any combination of L1, L2, L3, N, PE, any path combination
Switching of Coupling Paths Manual
Coupling Capacitance 9 μF, 18 μF
Coupling resistance 10 ohm, 0 ohm

Coupling resistance according IEC 61000-4-5 or Users customize
EUT load capacity MAX AC 380 V 200 A
Residual pulse voltage at the injection of EUT Less than 15% of test pulse voltage or 2 times rated voltage of CDN
Weight About 150 Kg
Grounding mode Flat grounding wire
Operating Temperature 15 ℃ – 35 ℃
Operating Humidity 35% ~ 85%RH(Non-condensation)
Operating air Pressure 75 kPa ~ 106 kPa

Downloads

Adobe PDF

High Power Lightning surge coupling decoupling network SPN 38200TM Series Datasheet

Language: English
