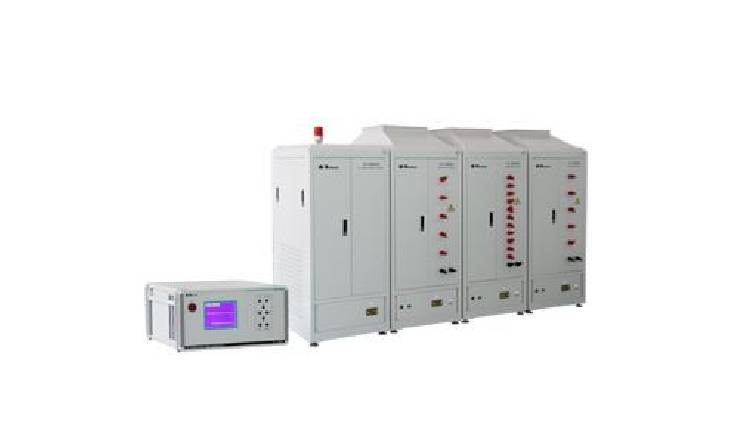

High-Power Power Line Interference Generator YD 1089

Model：YD1089

Power line interference generator YD1089 is designed to simulate the interference generated by the high-power power line to the signal / data lines through electromagnetic inductance or direct contact.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Power line interference generator YD1089 is designed to simulate the interference generated by the high-power power line to the signal / data lines through electromagnetic inductance or direct contact.

Features：

  • Miniaturized dimension, high and reliable performance with the state-of-art technologies and built-in control system.
  • Easy operation and endurable with integrated system.
  • Superior quality with imported key components.
  • Wide range of functions in control, measurement, protection, connection, alarms, hints.
  • Unique data acquisition and measurement methods.
  • Great overload capacity and current-limiting protection.

Structure of the Generator

YD-1089 consists of built-in main control unit, LCD display, power supply, power input regulating devices, and measuring devices etc.

Standard

  • GR-1089
  • ITU-T K.21
  • ITU-T K44
  • YD-T 993-2006

Specifications

Technical Parameters
Test Interval 5 s – 99 min 99 s
Test Duration 99 min 99 s
No. of Tests 1 – 999
Triggering Method Automatic / manual
Main Operating Power Single-phase AC 220 V (±5%), ≥150 kVA, 50 Hz / 60 Hz (± 5%)
Auxiliary Operating Power Single-phase, AC 220 V (±10%), ≤10 A
Dimension 1,400 x 750 x 1,700 mm
Weight 1,100 kg
Output Voltage Test Mode Output Current (±10%)
AC 100 V – 300 V (±10%) Contact mode < 20 min: 9 A – 27 A; 22 A – 66 A 9 A – 27 A;

22 A – 66 A
AC 400 V (±10%) Inductance mode < 1 min 0.5 A;
1 A;
Contact mode < 20 min: 5 A;
15 A;
30 A;
60 A;
120 A;
350 A
AC 600 V (±10%) Inductance mode < 1 min 0.5 A;
1 A;
7 A;
40 A;
60 A
Contact mode < 20 min 2.2 A;
AC 1,000 V (±10%) Contact mode < 20 min 0.5 A;
15 A;
30 A;
60 A;
120 A;
