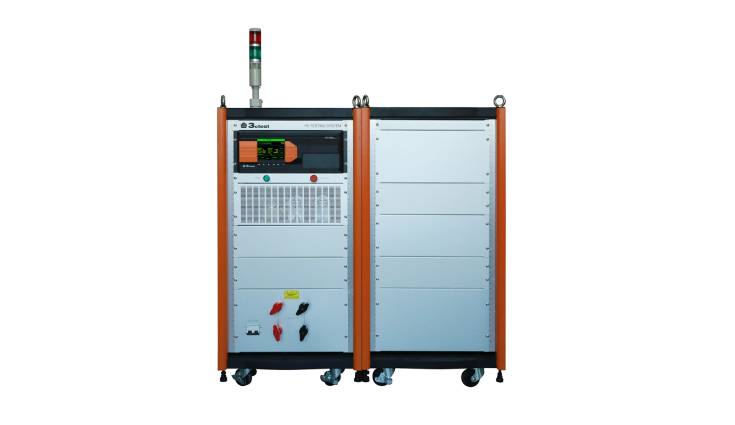

High Power Short Time Overcurrent Simulator ICG 3000 series

Model：ICG 3000 series

The high-power short-time overcurrent simulator ICG 3000 series is a test instrument designed according to ANCI C12.02-2001 standard.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The high-power short-time overcurrent simulator ICG 3000 series is a test instrument designed according to ANCI C12.02-2001 standard, which is suitable for detecting the disturbance immunity of the power meter at 50Hz/60Hz power frequency. The product also meets the test requirements of GB/T17215.301 and GB/T17215.322.

Features：

  • Emergency protection button
  • LCD display, current measurement and acquisition system.
  • Built-in high-power voltage regulator, CPU intelligent control.
  • Imported high-power IGBT semiconductor switch, safe and stable.
  • Both GB/T17215.301 and GB/T17215.322 are met.

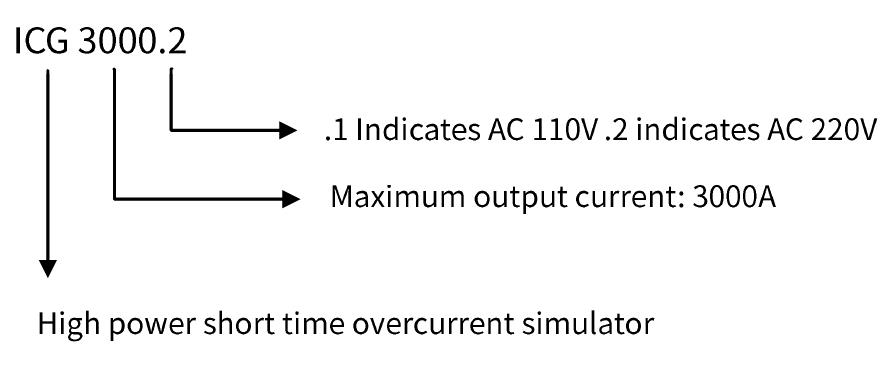

Naming rule：

Standard

  • ANCI C12.02:2001
  • GB/T 17215.301
  • GB/T 17215.322

Specifications

Technical Parameters
Input Voltage ICG3000.1：AC 110V 120A
ICG3000.2：AC 220V 63A
Output Voltage 0.01 ～ 3V
Output Current 10 ～ 3000A
Output Current Accuracy 0 ～ -10%
Output Waveform Sine wave
Output Frequency 50Hz/60Hz
Current Injection Time 8ms ~ 9999ms or 0.5 ~ 500 cycles
Generator Output Impedance 0.001Ω
Output Phase Angle 0°
Test Interval 1 ～ 9999s
Test Number 1 ～ 9999
Test Mode Manual, automatic
General Parameters
Supply Voltage AC110V/220V，(±10%)，50Hz/60Hz
(220 V in mainland China)
Environment Temperature 15 ～ 35℃
Relative Temperature 25 ～ 75%
Barometric Pressure 86kPa ～ 106kPa
Boundary Dimension ICG3000.1：22U*2
ICG3000.2：22U
Weight ICG3000.1：约200kg
ICG3000.2：约273kg
