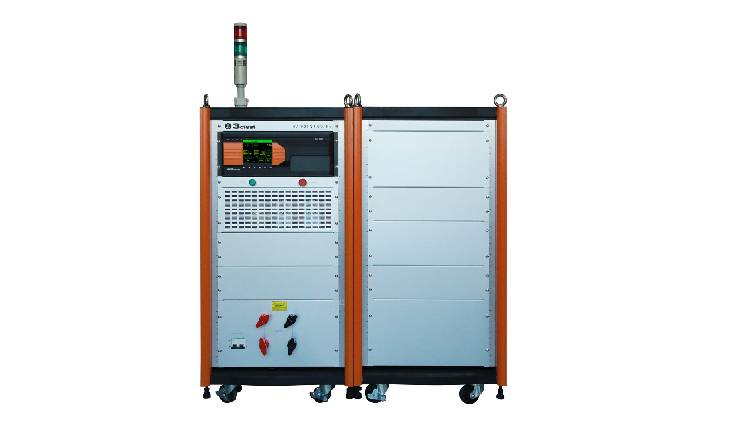

High power short time overcurrent simulator ICG 3600

Model：ICG 3600

The high-power short-time overcurrent simulator ICG 3600 is a test instrument designed according to ANCI C12.02-2001 standard, which is suitable for detecting the disturbance immunity of power meter at 50Hz/60Hz power frequency.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The high-power short-time overcurrent simulator ICG 3600 is a test instrument designed according to ANCI C12.02-2001 standard, which is suitable for detecting the disturbance immunity of power meter at 50Hz/60Hz power frequency. The product also meets the test requirements of GB/T17215.301 and GB/T17215.322.

Features

  • Emergency protection button.
  • LCD display, current measurement and acquisition system.
  • Built-in high-power and high-precision voltage regulation (current regulation) device, which can be intelligently controlled by software.
  • Imported high-power IGBT semiconductor switch, safe and stable.
  • Both GB/T17215.301 and GB/T17215.322 are met.

Standard

  • GB/T 17215.322
  • GB/T 17215.301
  • ANCI C12.02-2001

Specifications

Technical Parameters
Input voltage AC 220V 100A 50Hz/60Hz
Output voltage 0.01 ～ 3.3V
Output current 10 ～ 3600A
Output current accuracy 0 ～ -10%
Output waveform sine wave
Frequency 50Hz/60Hz
Current injection time 1ms ~ 9999ms or 0.3 ~ 500 cycles
Generator output impedance 0.001Ω
Output phase angle 0°
Test interval 1 ～ 9999s
Test number 1 ～ 9999
Test mode Manual, automatic
Common Parameters
Display screen 5.7-inch TFT touch screen
Operating power supply range AC220V，(±10%)，50Hz/60Hz
Fuse 6 A
Maximum power consumption 200 W
Instrument Grounding Connection Use flat ground wires
Dimensions 22U*2
Weight Approx 282kg
Environment temperature 15℃ ~ 35℃
Relative humidity 25% ~ 75%
Barometric pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

High power short time overcurrent simulator ICG 3600 series Datasheet

Language: English
