High Voltage And High Power Impulse Current Coupling/Decoupling Network CPN 10050T30

Model：CPN 10050T30

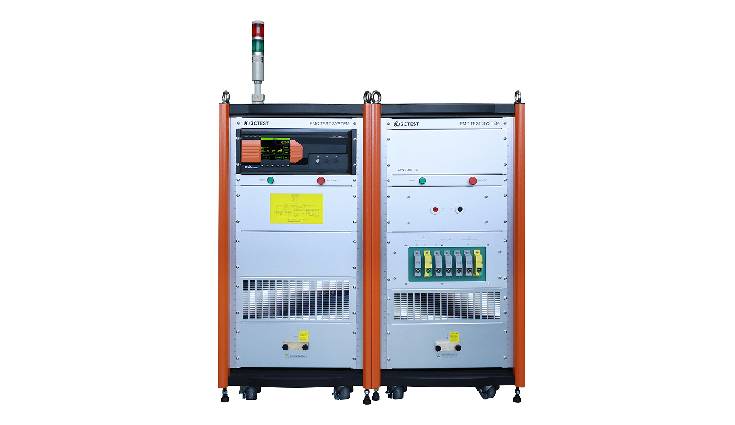

CPN 10050T30 high voltage and high-power impulse current coupling/decoupling network, paired with host S15C3000 for 8/20 μ s current waveform testing.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Introduction：

CPN 10050T30 high voltage and high-power impulse current coupling/decoupling network, paired with host S15C3000 for 8/20 μ s current waveform testing, with a maximum coupling pulse current of 25 kA. The maximum load capacity of EUT is AC 1000V 50A three-phase five wire, DC 1500V 50A, with simple and fast equipment operation and strong reliability.

Features：

  • EUT maximum load capacity AC 1000V 50A/DC 1500V 50A.
  • The maximum coupled pulse current can reach 25 kA.
  • Easy to operate, fully automatic coupling mode.
  • Ethernet LAN communication, stable and reliable.

Standard

  • IEC 61643-11
  • GB/T 18802.11

Specifications

Technical Parameters
Three-phase Fully Automatic Coupling/Decoupling Network Accord with EN/IEC 61643-11、GB/T 18802.11
Coupled pulse current wave test
Current up to 25 kA (8/20μs)
Note: The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator.
Current Output 4 kA ~ 25 kA (±10%)
Note: 4 kA depends on the breakdown voltage of the gas discharge tube.
Coupled Network Port L1(DC+), L2, L3, N(DC-), PE
Coupling Path L1(DC+), L2, L3, N(DC-), PE Line Any combination path
Coupled Switching Mode Automatic switching
Coupled Apparatus Gas discharge tube coupling
EUT Carrying Capacity Max AC 1000V 500A
Max DC 1500V 50A
General Parameters
Display Screen 5.7-inch TFT touch screen
Operating Power Supply Range AC 220V, (±10%), 50Hz/60Hz
Fuse 10 A
Maximum System Power Consumption 1500 W
Communication Mode Ethernet LAN
External Control Mode 25-pin parallel mouth thread
Instrument Grounding Connection Use flat ground wires
Dimensions 22U*2
Weight Approx 410kg
Environment Temperature 15℃ – 35℃
Relative Humidity 45% – 75%
Barometric Pressure 86 kPa – 106 kPa
