High Voltage And High Power Impulse Current Coupling/Decoupling Network CPN 38100T30

Model：CPN 38100T30

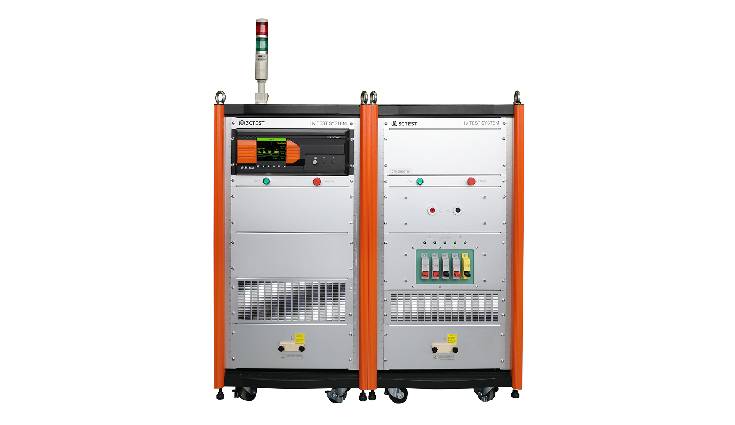

CPN 38100T30High voltage and high power impulse current coupling/decoupling network, coupled with host S15C3000 for 8/20μs current waveform test, coupled pulse current up to 30 kA.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Introduction

CPN 38100T30High voltage and high power impulse current coupling/decoupling network, coupled with host S15C3000 for 8/20μs current waveform test, coupled pulse current up to 30 kA. EUT maximum load capacity AC 380V 100A Three-phase five-wire, DC 380V 100A, the equipment is simple and fast operation, high reliability.

Features

  • EUT Maximum load capacity AC/DC 380 100A.
  • The coupled pulse current is up to 30kA.
  • Easy to operate, automatic coupling mode.
  • Ethernet LAN communication, stable and reliable.

Standard

  • IEC 61643-11
  • GB/T 18802.11

Specifications

Technical Parameters
Three-phase Fully Automatic Coupling/Decoupling Network Accords with EN/IEC 61643-11, GB/T 18802.11
Coupled Pulse Current Wave Test
Current up to 30kA (8/20μs)
Note: The actual output pulse voltage value of the coupling/decoupling network depends on the set value of the pulse generator
Current Output 1.5KA ~ 30KA (±10%)
Note: 1.5KA depends on the breakdown voltage of the gas discharge tube
Coupled Network Port L1 (DC+), L2, L3, N (DC-), PE
Coupling Path L1 (DC+), L2, L3, N (DC-), PE Line Any combination path
Coupled Switching Mode Automatic switching
Coupled Apparatus Gas discharge tube coupling
EUT Carrying Capacity Max AC 380V 100A
Max DC 380V 100A
Accessories
Display Screen 5.7-inch TFT touch screen
Operating Power Supply Range AC 220V, (±10%), 50Hz/60Hz
Fuse 10 A
Maximum System Power Consumption 1500 W
Communication Mode Ethernet LAN
External Control Mode 25-pin parallel mouth thread
Instrument Grounding Connection Use flat ground wires
Dimensions 22U*2
Weight Approx. 410kg
Environment Temperature 15℃ – 35℃
Relative Humidity 45% – 75%
Barometric Pressure 86 kPa – 106 kPa
