High voltage and high power intelligent

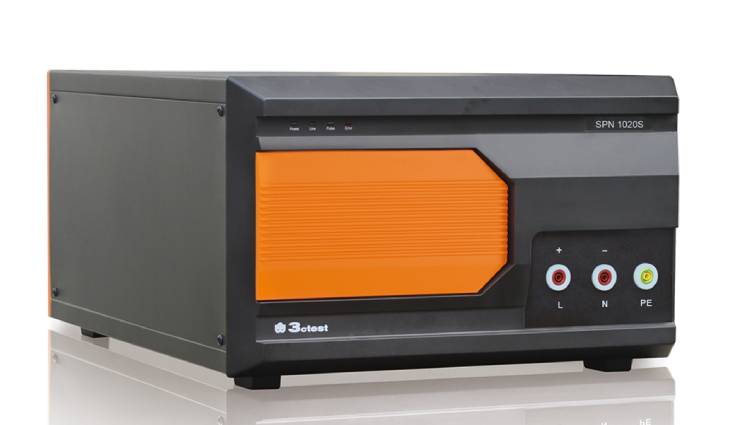

Model:SPN 1020S

SPN 1020S high-voltage high-power intelligent lightning surge coupling/decoupling network, fully automatic single-phase coupling/decoupling function.

In Stock
Enquire Now

Description

SPN 1020S high-voltage high-power intelligent lightning surge coupling/decoupling network, fully automatic single-phase coupling/decoupling function, can meet AC/DC power supply, supporting CCS, CWS series of instruments, EUT load maximum capacity DC 1000V 20A, AC 700V 20A, Other EUT voltage and current levels can be customized according to customer requirements.

Features:

  • EUT DC load capacity DC 1000V 20A.
  • EUT AC load capacity AC 700V 20A.
  • Semiconductor switching technology, EUT power automatic switching.
  • EUT voltage and current detection function.
  • Overvoltage, overcurrent protection function.
  • Test parameters such as test voltage, polarity, phase synchronization Angle, etc.
  • Scheduling Settings, to achieve automatic network switching function.
  • Arbitrary line phase Angle overlay function.

Standard

  • IEC 61000-4-5
  • IEC 61000-6-2
  • IEC 61000-6-1
  • GB/T 17626.5

Specifications

SPN 1020S
Single-phase Fully Automatic Coupling/Decoupling Network Conform to the EN/IEC 61000-4-5

Lightning surge combined wave test, voltage up to 8.0kV (1.2/50us), current up to 4.0kA(8/20us)

EUT Load Capacity Max AC 700V 20A 50/60Hz
Max DC 1000V 20A
EUT Ability to Withstand Short-Time Impulse Current with Load Peak 500A
EUT Switching Mode automatic switching
Temperature Detection Function Maximum allowable temperature: 80℃
Phase Synchronization L, N, PE, any line-line, line-ground phase Angle superimposed

45-65Hz,0°-360°,1°Step setting or random mode

Coupling Path Any combination path of L, N, and PE
Coupled Switching Mode automatic switching
Coupling Capacity 9uF、18uF
Coupling Resistance 10 ohm、0 ohm

The coupling resistance can be selected in IEC standard or custom mode

Coupling Attenuation <2dB
EUT Residual Pulse Voltage at the Injection End Not more than 15% of the applied test pulse voltage or twice the peak rated voltage of the coupling/decoupling network
Dimension 19″/6U
Weight Approx 40Kg
