High Voltage and Power EFT/Burst

Model：EFTN 70400T

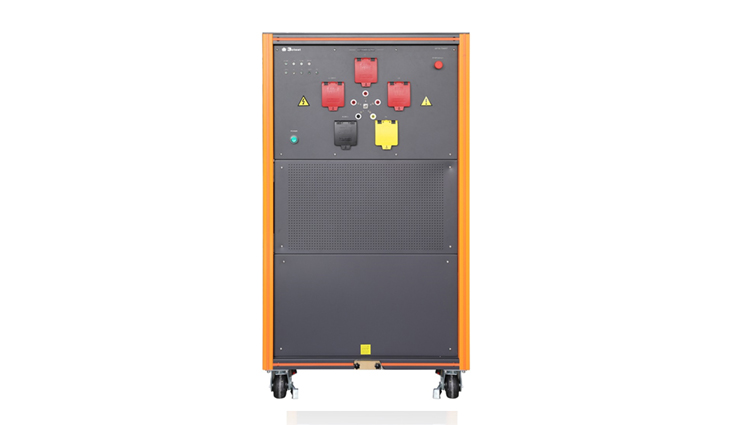

EFTN 70400T high voltage and powerfully automatic three-phase coupling/decoupling network is meeting IEC 61000-4-4 requirements.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

EFTN 70400T high voltage and power、fully automatic three-phase coupling/decoupling network is meeting IEC 61000-4-4 requirements, and has the characteristics of good reliability, stable performance and convenient use. Maximum EUT load capacity: AC 700 V, 400 A and DC 1500 V, 400 A. Other EUT voltage and current levels can be customized according to customer requirements.

Features：

  • EUT supply can reach MAX AC 700 V, DC 1500 V;
  • Maximum current can reach 400 A;
  • Maximum pulse voltage can reach 6 kV;
  • Automatic coupling/ decoupling network;

Standard

  • IEC 61000-4-4
  • IEC 61000-6-2
  • IEC 61000-6-1
  • GB/T 17626.4
  • EN 61000-4-4

Specifications

Technical parameters
EUT supply voltage MAX 700 VAC 50/60 Hz;

MAX 1500 VDC
EUT current MAX 400 A
Burst voltage MAX 6 kV
Coupling path L1(DC+), L2, L3, N(DC-), PE any line coupling
Coupling switching

mode

 Automatic
Coupling capacity 33nf
Phase L1, L2, L3, N, PE, Arbitrary path superposition phase angle
Residual pulse voltage at the injection of EUT Less than 10% of test pulse voltage
Grounding mode 4mm banana line
Burst INPUT port Coaxial cable
EFT INPUT mode Single or multi-line simultaneous injection
General Parameters
Cabinet size 800×1200×1450 mm
Weight Approx.150 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa
