High Voltage & Bulk Power Artificial Power

Model：LISN J3000

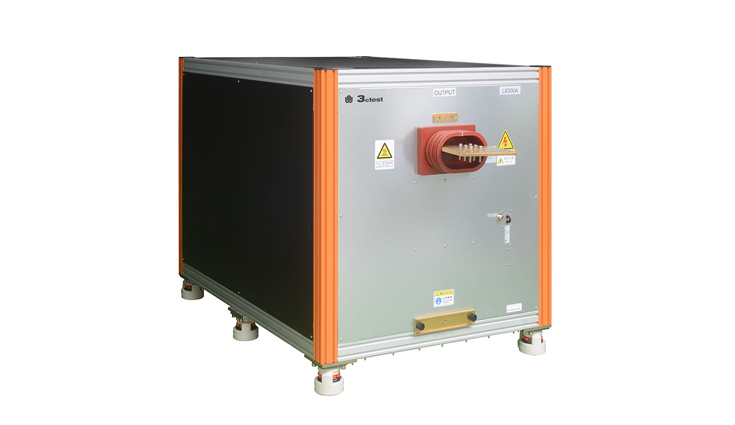

High voltage & bulk power artificial power supply networks LISN J3000 is designed as per GJB151B-2013 and MIL-STD-461E-1999 and used to separate parts from mains and measure the disturbances feature of vehicles.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

Artificial mains networks are also referred to as line impedance stabilization networks. LISN J3000 is designed as per GJB151B-2013 and MIL-STD-461E-1999 and used to separate parts from mains and measure the disturbances feature of vehicles, ships and internal combustion engines, in which the impedance completely meets the requirements specified in Standards. EUTs are connected to the output ports of panel, mains ports are connected to the Input ports of panel. EMI measurement port is SHV-BNC Interface.

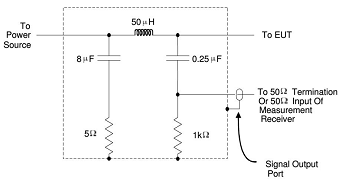

Design Schematic Diagram

Standard

  • GJB 151B-2013
  • MIL-STD-461E-1999

Specifications

Technical Parameters
Standard GJB151B-2013

MIL-STD-461E-1999
Test Voltage (Vmax) 6000 V（DC Hz～60 Hz）
Test Current (Imax) 3000 A （DC Hz～60 Hz）
Test Terminal SHV-BNC Type
Inductance 50 μH
Coupling Capacitor 0.25 μF
Impedance Frequency Range 10 kHz～10 MHz
General Parameters
Cabinet Dimension 1816 mm (L)*960 mm (W)*1076 mm(H)
Weight Approx. 430 kg
Ambient Temperature 15 ℃–35 ℃
Relative Humidity 45%–75%
Atmosphere Pressure Range 86 kPa–106 kPa

Downloads

Adobe PDF

High Voltage & Bulk Power Artificial Power Supply Networks LISN J3000 Datasheet

Language: English
