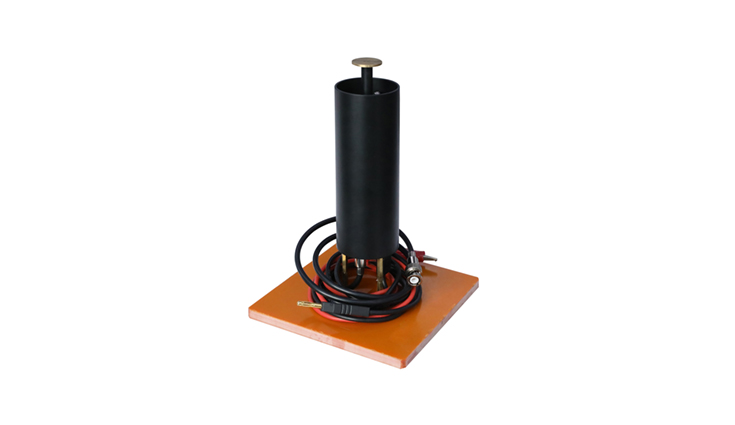

The high voltage divider EDS-HVM30 is designed in accordance with IEC/EN 61000-4-2 Ed. 2 and is used for measuring whether the output voltage under air discharge mode of ESD tests meets the standard requirement.

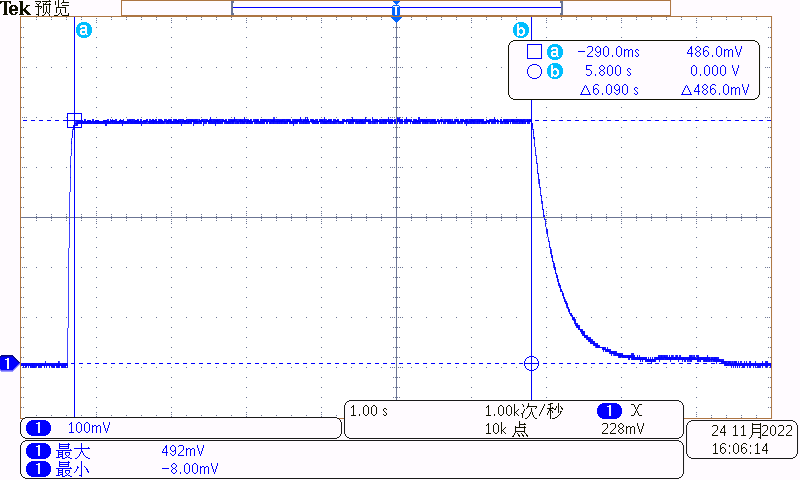

10 kV positive air discharge

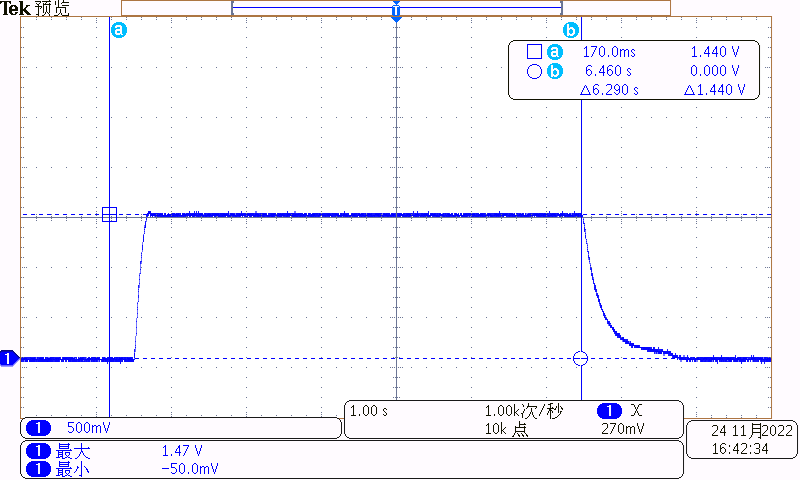

30 kV positive air discharge
| Technical Parameters | |
|---|---|
| Standard | IEC 61000-4-2 |
| Test voltage | Max. 30kV |
| Discharge mode | Air discharge |
| Impedance | 20GΩ // 3 pF |
| Attenuation Ratio | 20651:1 (reference value) |
| Weight | 1 kg |
