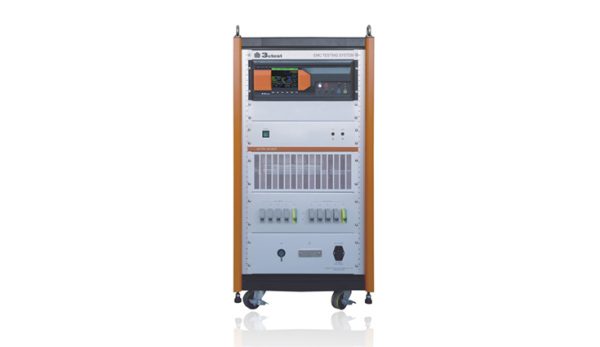

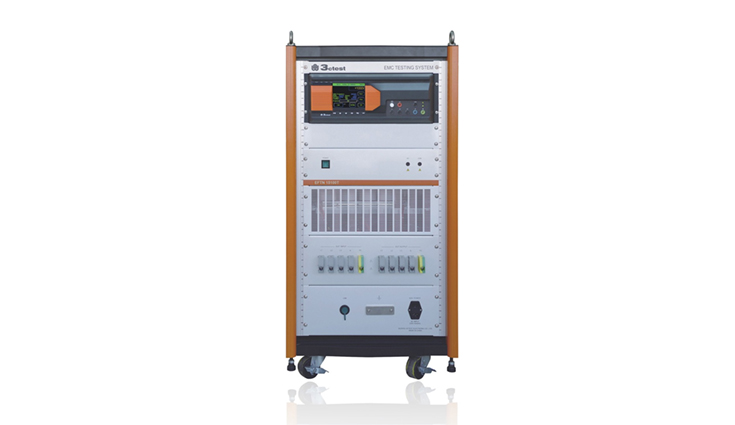

High Voltage High-power EFT/Burst Test

Model：EFT 500G / EFTN 15100T

The HV high-power EFT/burst immunity test system EFT/500G& EFTN 15100T is a high-end test device, which is specially designed to meet the requirement of new energy test system and EUT with high-power load.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The HV high-power EFT/burst immunity test system EFT/500G& EFTN 15100T is a high-end test device, which is specially designed to meet the requirement of new energy test system and EUT with high-power load. The system features high reliability, stable performance and convenience to use. Its built-in coupling/decoupling network can couple maximum 4.8 kV pulse voltage onto mains supply system with voltage up to DC 1500 V/AC 700 V (three-phase-five-line) and current 100 A. Higher voltage and current levels are available for customer’s request.

Features：

  • EUT DC load capacity: DC 1500 V 100 A.
  • EUT AC load capacity: AC 700 V 100 A, three -phase five- wire.
  • EUT power automatic switching over.
  • EUT voltage and current detection.
  • Overvoltage, over-current protection.
  • Setting test voltage, polarity and phase sync angle by scheduling and fully automatic network switching over.
  • Phase angle superposition for any line.

Standard

  • IEC 61000-4-4
  • IEC 61000-6-2
  • IEC 61000-6-1
  • GB/T 17626.4
  • EN 61000-4-4

Specifications

Technical parameters
Electrical Fast Transient/Burst simulator EFT 500G
Test voltage range 0.25 kV ~ 4.8 kV（±10%）
Polarity +/-/alternate
Source impedance 50 Ω
Pulse waveform 5/50 ns, 50 Ω , 1000 Ω load
Rise time 5 ns±30%, 50 Ω load，1000 Ω load
Pulse duration 50 ns, ±30%, 50 Ω load，

50 ns, -15/+100 ns, 1000 Ω load
Pulse frequency 0.1 kHz ~ 1000 kHz
Burst duration 0.075 ms ~ 750 ms
Burst cycle 1 ms ~ 9999 ms
Test duration 1 s ~ 9999 s
Trigger mode Auto, manual or external
Synchronization 0°~360°, resolution 1° step or random
Coupling/Decoupling Network EFTN 15100T
Three-phase fully automatic CDN Electrical Fast Transient/bust tests，voltage up to 4.2 kV
EUT load capacity Max AC 700 V 100 A 50/60 Hz three-phase five-wire; Max DC 1500 V 100 A
Short-term Inrush Current Peak value: 400 A
EUT switching over method Auto switching over
Phase synchronization Any combination of L1, L2, L3, N, PE with any phases and angles
Coupling paths Any combination of L1, L2, L3, N, PE
Coupling switching over mode Auto switching over
Coupling capacitance 33 nF
Coupling attenuation ＜2 dB
Residual pulse voltage at the injection of EUT Less than 15% of test pulse voltage
General Parameters
Cabinet size 19”/22U
Weight Approx.100 kg
Ambient Temperature 15 ℃ ~ 35 ℃
Relative Humidity 45% ~ 75%
Atmospheric Pressure 86 kPa ~ 106 kPa

Downloads

Adobe PDF

High Voltage High-power EFT/Burst Test Series Datasheet

Language: English
