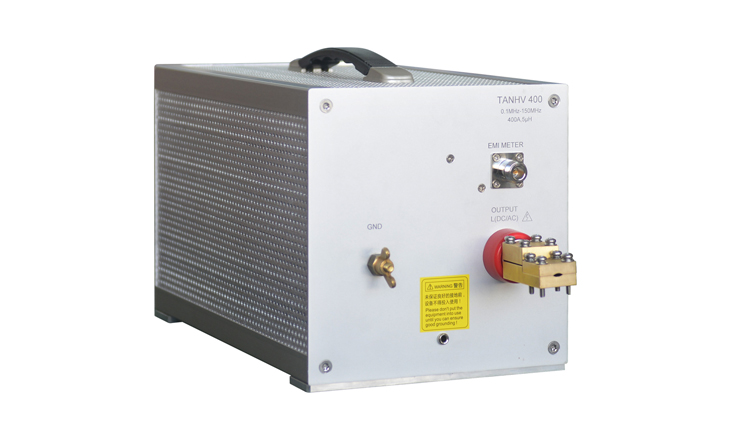

The high voltage lisn TANHV series are used for isolating components and power source in test as per CISPR 25 and ISO 7637-4, also can be used in measuring e-vehicle hv test system’s interference characteristics.
The EMI measuring port are type N.
L1：5 μH C1：0.1 μF
C2：0.1 μF R1：1 KΩ
R2：1 MΩ
| TANHV 050-Technical Parameters | |
|---|---|
| Test Voltage (Vmax) |
300 V 400 Hz |
| 700 V 50/60 Hz | |
| 1000 V DC | |
| Test Current (Imax) |
50 A |
| Instantaneous Max. Current | 80A |
| Dimension | 220 x 160 x 170 mm |
| Weight | Approx. 2.2 kg |
| TANHV 200-Technical Parameters | |
| Test Voltage (Vmax) |
300 V 400 Hz |
| 700 V 50/60 Hz | |
| 1000 V DC | |
| Test Current (Imax) |
200 A |
| Instantaneous Max. Current | 280A |
| Dimension | 490 x 200 x 215 mm |
| Weight | Approx. 8.5 kg |
| TANHV 400-Technical Parameters | |
| Test Voltage (Vmax) |
300 V 400 Hz |
| 700 V 50/60 Hz | |
| 1000 V DC | |
| Test Current (Imax) |
250 A |
| Instantaneous Max. Current | 500A |
| Dimension | 490 x 200 x 215 mm |
| Weight | Approx. 8.5 kg |
| General Parameters | |
| Impedance Frequency Range | 0.1-150 MHz |
| Impedance | 5 μH ‖ 50 Ω |
| Coupling Capacitor | 0.1 μF |
| Ambient Temperature | 15-35 ℃ |
| Relative Humidity | 45% – 75% |
| Atmospheric Pressure | 86 kPa – 106 kPa |
