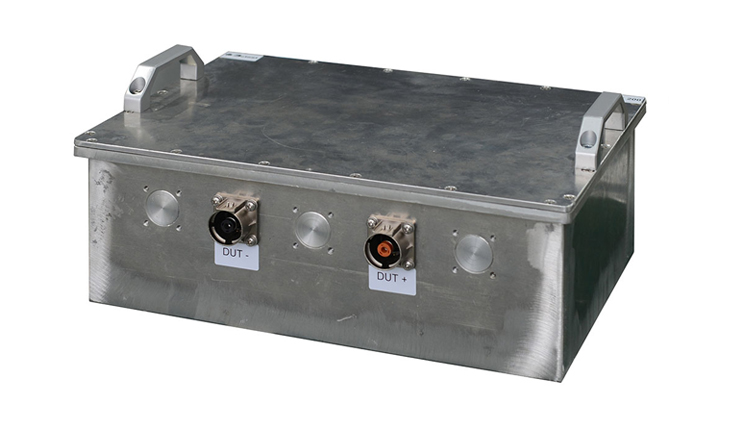

The HVSE 200 is applied to the common mode/differential mode testing switching of Waveform A and Waveform C specified in ISO 7637-4. Through plugging in corresponsive port, HVSE 200 can save users from complicated wiring. With features of easy operation and good shielded effect.

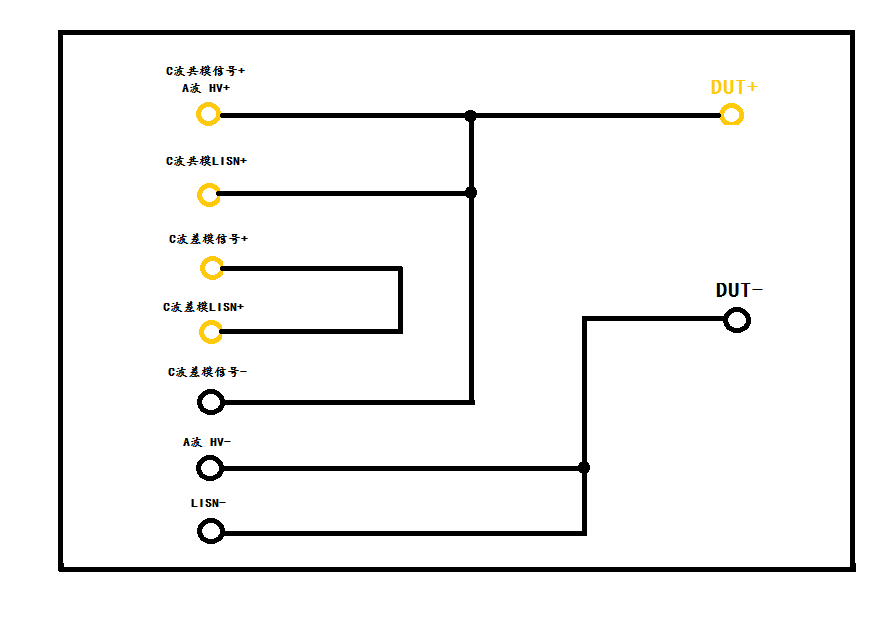

Internal Schematic Diagram：
| Technical Parameters | |
|---|---|
| Port on Front Panel | Waveform A and Waveform C common/differential mode testing port |
| Port on Rear Panel | DUT Output |
| Shielded Effect | ＞80 dB |
| Ambient Temperature | 15 ℃~35 ℃ |
| Relative Humidity | 45% ~ 75% |
| Atmospheric Pressure | 86 kPa ~ 106 kPa |
| Dimension | 380 mm （L）×300 mm（W）×165 mm（H） |
| Weight | Approx. 9.6 kg |
| Material | Aluminum |
Model：7637-4R500/120
The 7637-4R500/120 is designed to meet the requirement of matched impedance and circuit capacitor of Waveform A, waveform B and waveform C specified in ISO 7637-4. The resistor or capacitor can be used independently or combined in parallel.
Model：7637-4R500/120
The 7637-4R500/120 is designed to meet the requirement of
...
Model：HVSE 400
The high-voltage shielding equipment HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles.
Model：HVSE 400
The high-voltage shielding equipment HVSE 400 is designed to im
...
Model：TPT-7637-4C1000C
The TPT-7637-4C1000C coupling transformer is a broadband coupling transformer designed for the anti-interference testing needs of standards such as ISO 21498-2:2021.
Model：TPT-7637-4C1000C
The TPT-7637-4C1000C coupling transformer is a broadban
...
Model：TPT-7637-4C100B
The coupling transformer TPT-7637-4C100B is specially designed according to the pulse B test requirement specified in ISO 7637-4:2020.
Model：TPT-7637-4C100B
The coupling transformer TPT-7637-4C100B is specially de
...
