High-Voltage Shielding Equipment HVSE

Model：HVSE 400

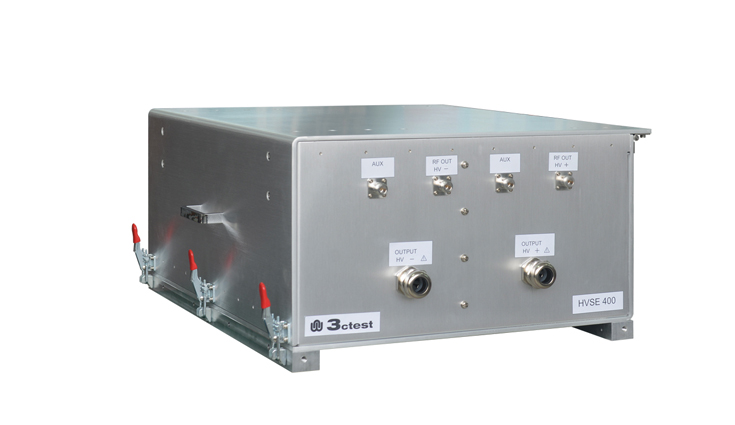

High-voltage shielding equipment HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

HVSE 400 is designed to improve the shielding effect of artificial mains network TANHV 400, which is required for tests in the electric vehicles or hybrid electric vehicles. HVSE 400 is equipped with Aluminum shell, three quick fasteners and gas springs, able to be opened and closed within a few seconds, and unique cable connectors on front and back panels, allowing for quick installation of test cables.

Features:

  • Supreme shielding effect;
  • Fast opening and closing;
  • Unique cable connectors, convenient to install the test cables;



Inside View

Standard

  • CISPR25
  • ISO 7637-4

Specifications

Technical Parameters
Front Panel Connectors 4 x N female, RF HV+, RF HV-;
2 x AUX
Back Panel Connectors HV+, HV-;
Shielding Effect Typ. > 100 dB;
Corresponding LISN TANHV 400
Cable Dia. 11 mm – 21 mm
Cable Connector Size 36 mm
General Parameters
Operating Temp. 15℃ – 35℃
Operating Humidity 45% – 75%
Operating Air Pressure 86 kPa – 106 kPa
Dimension 720 x 562 x 286 mm
(L x W x H)
Weight Approx. 25 kg
Material Aluminum
