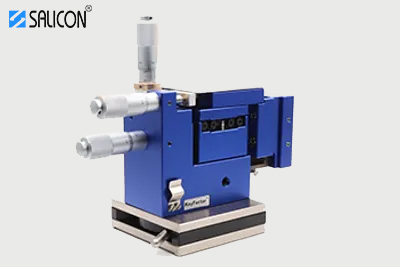

HPP100 Micropositioner

Application: Ultra Stable I-V/C-V Probing.

In Stock
Enquire Now

Description

Features

  • Ultra stable and precise – Precision micrometer heads are installed on one rigid base, which reduces vibration
    from hand to the probe tips, truly accurate and stable for submicron probing.
  • Backlash free – Spring loaded X-Y-Z, stable and backlash free.
  • Linear motion – Precisely machined glides assures motion linearity.

Ordering Information

  • HPP100-V – HPP100 micropositioner with vacuum mounting.
  • HPP100-MO/F – HPP100 micropositioner with magnetic mounting, with on/off function.
  • S10 – S10 series probe holders for I-V/C-V, pulsed I-V measurements.
  • FemtoProbe – Ultra low noise coax probe for optimized I-V, pulsed I-V measurement.
  • CPA-10 – Coax probe for optimized C-V, LCR, Pulsed I-V measurement.
  • FP-A100 – Adapter for FemtoProbe or CPA-10 probe.
  • FP-A200 – Pivoted adapter for FemtoProbe or CPA-10 probe.

Specifications

HPP100 Micropositioner
Accuracy 0.5μm
X-Y-Z Travel Range 12.5mm*12.5mm*12.5mm
TPI 100
Mounting Vacuum
Magnetic – W On/Off function, available upon request
Dimensions 133mm*35mm*111mm (W*D*H)
Specifications and designs are subject to change without notice.
