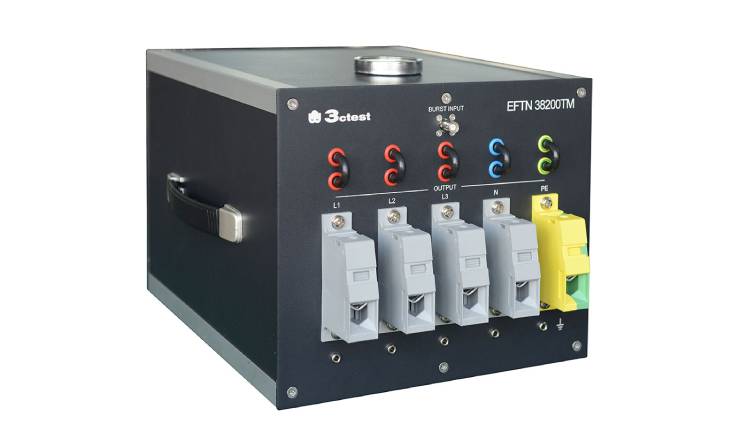

The EFTN 38200TM three-phase manual coupling/decoupling network is designed according to IEC/EN 61000-4-4. It can couple EFT/Burst wave pulses onto three-phase mains supply system with voltage AC 380 V and current 200 A and is your ideal choice with high reliability, stable performance and convenience of use.
| Technical Parameters | |
|---|---|
| Test Voltage | Max 4.2 kV;
(Note: the actual output value is subject to the set value of the generator) |
| Coupling Paths | Any combination of L1, L2, L3, N, PE |
| Switching of Coupling Paths | Manual |
| Coupling Capacitance | 33 nF |
| Coupling Attenuation | <2 dB |
| Residual Impulse Voltage at EUT Input Terminal | Less than 10% of test voltage; |
| EUT Load Capacity | 3-phase 5-wire, AC 380 V,
200 A; |
| EUT Power Supply Injection | Via banana plug; |
| EUT Injection Method | Via co-axial cable; |
| Grounding Method | Via flat grounding strap; |
| General parameters | |
| Weight | About 30 Kg |
| Operating Temperature | 15 ℃ – 35 ℃ |
| Operating Humidity | 45%-75% |
| Operating air Pressure | 86 kPa-106 kPa |
