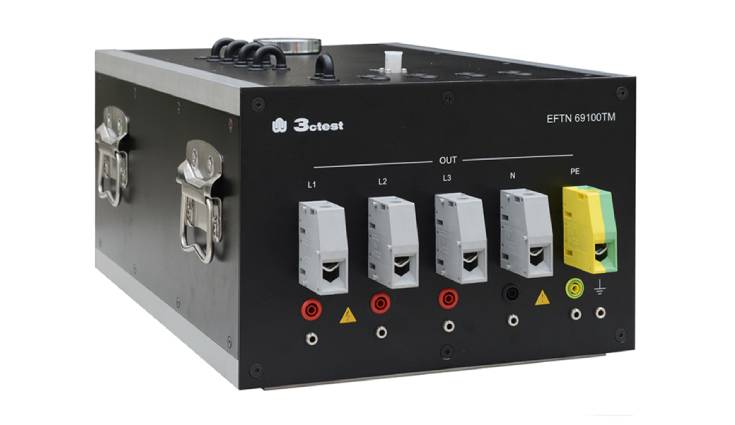

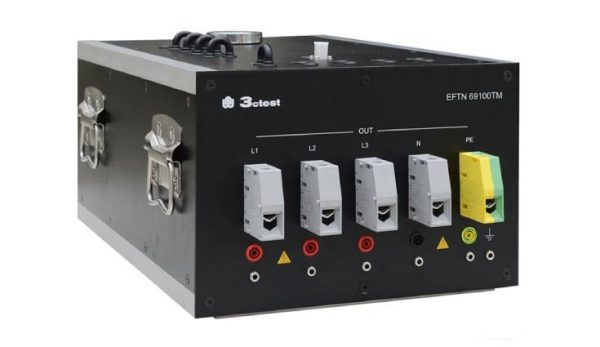

The EFTN 69100TM three-phase manual coupling/decoupling network is designed according to IEC/EN 61000-4-4. It can couple EFT/Burst wave pulses onto three-phase mains supply system with voltage AC 690 V and current 100 A and is your ideal choice with high reliability, stable performance and convenience of use.
| Technical Parameters | |
|---|---|
| EUT Power Voltage | AC 690 V, line-to-line, line-to-ground |
| EUT Current (AC or DC) | Max. 100 A (Continuous) |
| EFT/Burst Peak Voltage | Max. 4.2 kV |
| Coupling Paths | Any combination of L1, L2, L3, N, PE |
| Switching of Coupling Paths | Manual |
| Coupling Capacitance | 33 nF |
| Coupling Attenuation | <2 dB |
| Residual Impulse Voltage at EUT Input Terminal | Less than 10% of test voltage; |
| EFT/Burst Injection Port | Via BNC (female); |
| EUT/Burst Injection Method | Single line or multiple lines |
| Temp. Monitoring | Double metal thermometers ( 0 ℃ – 150 ℃) |
| Grounding Method | Via 4 mm banana plug |
| General parameters | |
| Weight | About 15 Kg |
| Operating Temperature | 15 ℃ – 35 ℃ |
| Operating Humidity | 45%-75% |
| Operating air Pressure | 86 kPa-106 kPa |
Model：SEPN 1000T
The SEPN 1000T three-phase automatic coupling/decoupling network for EFT/Burst and surge immunity tests is designed according to test requirements of IEC/EN 61000-4-4 and IEC/EN 61000-4-5.
Model：SEPN 1000T
The SEPN 1000T three-phase automatic coupling/decoupling netw
...
Model：SEPN 6932T
The SEPN 6932T three-phase automatic coupling/decoupling network for EFT/Burst and surge immunity tests is designed according to test requirements of IEC/EN 61000-4-4 and IEC/EN 61000-4-5.
Model：SEPN 6932T
The SEPN 6932T three-phase automatic coupling/decoupling netw
...
Model：SPN 3832TM
SPN 3832TM can realize fully automatic three-phase coupling and decoupling function. Supply AC/DC power for EUT and can be used with CCS series and CWS series.
Model：SPN 3832TM
SPN 3832TM can realize fully automatic three-phase coupling a
...
Model：SPN 38200TM
Manual coupling/decoupling network SPN 38200TM, It can form an electromagnetic compatibility test system with CCS series and CWS series instruments.
Model：SPN 38200TM
Manual coupling/decoupling network SPN 38200TM, It can form
...
