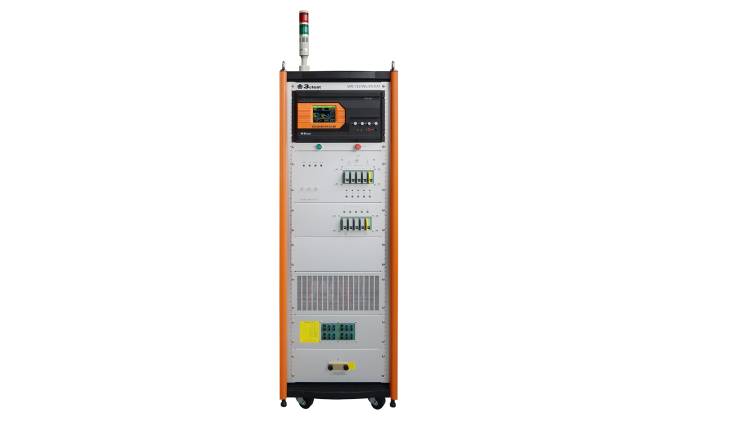

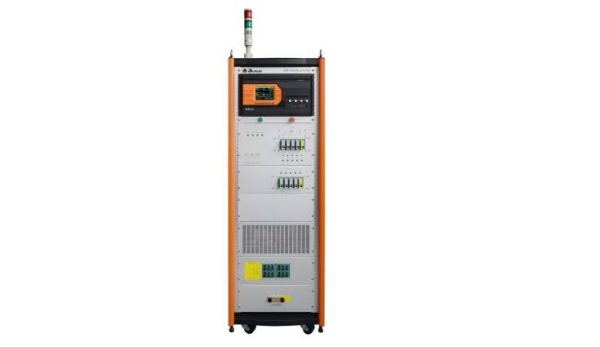

HV High-Power CDN for EFT/Burst SEPN 100100T10

Model：SEPN 100100T10

The SEPN 100100T10 three-phase automatic coupling/decoupling network for EFT/Burst and surge immunity tests is designed according to test requirements of IEC/EN 61000-4-4 and IEC/EN 61000-4-5.

In Stock
Enquire Now
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0 Total: 0 Total: 0

Description

The SEPN 100100T10 three-phase automatic coupling/decoupling network for EFT/Burst and surge immunity tests is designed according to test requirements of IEC/EN 61000-4-4 and IEC/EN 61000-4-5, features stable performance and convenient operation. The device is used together with CCS series, CWS series and EFT series of 3ctest. It can couple surge and EFT/Burst wave pulses onto three-phase mains supply system with voltage AC1000 V (three-phase-5-line)/DC 1500 V and current 100 A and can also be customized according to actual EUT load.

Features：

  • EUT load capacity DC 1500 V 100 A, AC 1000 V 100 A three-phase-five-line.
  • Current Range (0 A-100 A) is divided into 3 groups: 0 A-32 A, 32 A-63 A, 63 A-100 A, manual switching.
  • Overcurrent protection
  • Test sequencing for voltage, polarity, phase sync angle etc., realizing fully automatic switching.
  • Phase angles can superpose on arbitrary lines.

Standard

  • IEC 61000-4-5
  • IEC 61000-4-4
  • IEC 61000-6-2
  • IEC 61000-6-1
  • GB/T 17626.5
  • GB/T 17626.4
  • EN 61000-4-5
  • EN 61000-4-4

Specifications

Technical Parameters – EFT/Burst
Three-phase Fully-automatic CDN As per IEC/EN 61000-4-4; Voltage up to 4.2 kV; Note: due to the attenuation of CDN, the actual impulse voltage output from the port of CDN depends on the pulse voltage setting value in generators
Phase Sync Any combination of L1, L2, L3, N, PE with any phases and angles
Coupling Paths Any combination of L1, L2, L3, N, PE
DC Coupling Route L1 (DC+), N (DC-)
Switching of Coupling Paths automatic switching, test sequencing
Coupling Capacitance 33 nF
Coupling Attenuation <2 dB
Residual Pulse Voltage of EUT Injection Port ≤ 10% of test voltage;
Technical Parameters – Surge
Three-phase Fully-Automatic CDNs As per IEC/EN 61000-4-5; test voltage up to 10.0 kV(1.2/50 μs) , test current up to 5.0 kA(8/20 μs); Note: The actual pulse voltage output from CDN depends on the setting value in generators
Phase Sync Any combination of L1, L2, L3, N, PE with any phases and angles
Coupling Paths Any combination of L1, L2, L3, N, PE
DC Coupling Route L1 (DC+), N (DC-)
Switching of Coupling Paths automatic switching, test sequencing
Coupling Capacitance 9 nF, 18 nF
Coupling Resistance 10 Ω, 0Ω (standard or user-defined)
Coupling Attenuation <2 dB
Residual pulse Voltage at EUT Injection Port ≤ 15% of test voltage or 2 times of rated peak voltage of CDN;
General parameters
EUT Load Capacity Max AC 1000 V 100 A 50 Hz/60 Hz 3-phase-5-line
Max. DC 1500 V 100 A
EUT Mains Switching Mode Automatic switching
Short-term Inrush Current Peak value 400 A
Working Mains AC 110 V/220 V (±10 %)，50 Hz /60 Hz (±5 %)（default AC 220 V 50 Hz in mainland China）
Fuse 6 A
Max. Power Consumption 200 W
Auxiliary Interface D-sub 25p
Working Status Indication LED indication on front panel
Grounded Mode Flat grounded wire
Operating Temperature 15 ℃ – 35 ℃
Operating Humidity 45%-75%
Operating air Pressure 86 kPa-106 kPa
Dimension 35U rack
Weight About 180 Kg
