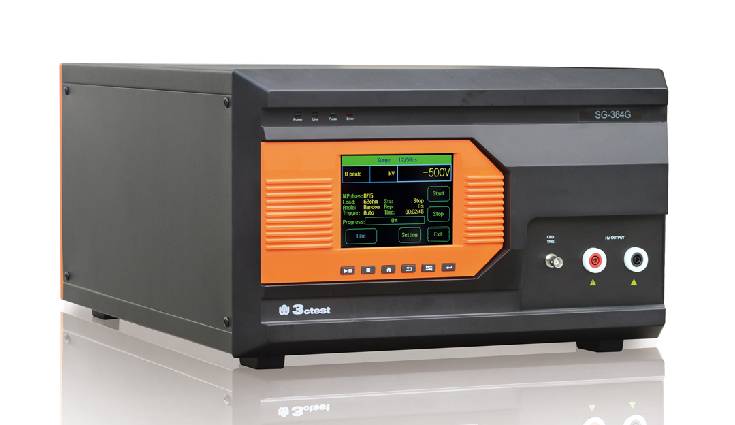

SG 384G voltage pulsed simulator is mainly designed for electrical and electronic products to conduct voltage pulse test with good reliability, stable performance and easy operation.
| Technical Parameters | |
|---|---|
| Test voltage | 0.5 kV–15.0 kV ±10% |
| Voltage rise time | 1.2us ± 30% |
| Voltage duration | 50us ± 20% |
| Cx≦0.0039uF |
Rs=62 ohm ± 10%
automatic switch |
| 0.0039uF | Rs=45 ohm ± 10%
automatic switch |
| 0.012uF | Rs=27 ohm ± 10%
automatic switch |
| Cx=0.01uF ± 2% | Tr:1.7(0/+50)%us |
| Td:46(0/+50)%us | |
| Polarity | +/- |
| Test interval | 10s-99s (shortest depends on test voltage) |
| Voltage peak detection | Measurement value displayed on screen |
| Number of test | 1–999 |
| Trigger mode | Automatic, manual, and external |
| Test mode | Programmable setup of technical parameters |
| General Data | |
| Display screen | 5.7 inch TFT touch screen |
| Power supply | AC 110V±10%, 220V±10%, 50/60Hz (default AC 220V 50Hz) |
| Fuse | 6A |
| Max. Power consumption | 200W |
| Memory space | infinite（PC） |
| Communication mode | Ethernet LAN、RJ45 |
| Auxiliary port | D-sub 25p |
| External trigger input | BNC,5V TTL |
| CRO trigger output | BNC,5V TTL |
| Input | BNC,5V TTL |
| Warning LED | 0-220VAC 10A/0-48VDC 3A Depending on external signal lamp |
| Safety circuit | Test only can be started when it is closed |
| Failure test | Display on LCD and interrupt the work at failure case |
| Working indicator | LED, LCD front panel display |
| Grounding connection | Flat ground line |
| Output mode | Standard 1m coaxial cable |
| Size | 6U cabinet |
| Weight | Approx. 15Kg |
| Temperature | 15–35℃ |
| Humidity | 45%–75% |
| Air pressure | 86kPa–106kPa |
