Description

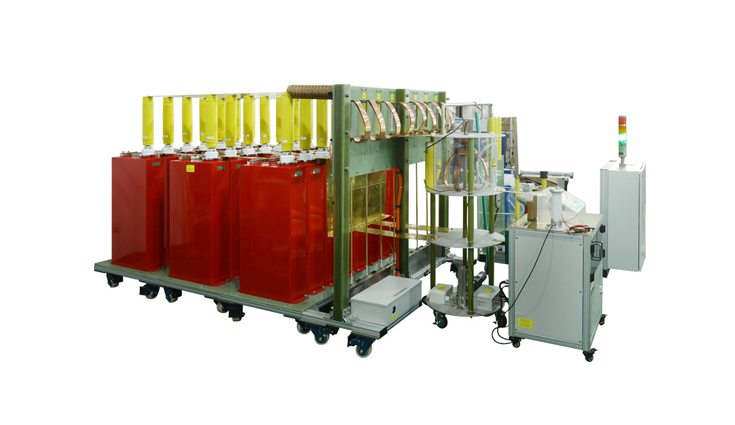

Impulse current test system LCG A series is mainly used to simulate high current generated by lightening to check the impact on power supply system and electric appliance. It can conduct impulse current tests with high integration, intelligent control and easy operation. There are multiple grades for output by different main circuit unit. With setting parameters on setting page, it can conduct the test automatically with one button.
- Human computer interface of colorful touch screen, easy to operate;
- PLC control system, stable and reliable operation;
- Different control modes: manual, automatic or programmable, as per different needs;
- Multiple grades of output ranges, test current down to 1kA;
- Charging mode of continuous current, effectively save energy;
- Abnormal protection by audible and visual alarm;
- Automatic measure and analyze parameters of different waveforms.
Specifications
| Technical Parameters |
| Item |
10/350μs current wave |
| Output peak |
10kA，15kA，25kA，35kA，50kA，100kA |
| T1 front time |
10μs（＜50μS） |
| T2 wave tail time |
350μs±10% |
| Reversed overshoot |
none |
| Front oscillatory |
＜5% |
| Voltage polarity |
+/-, (automatic switch) |
| Waveform switch |
Automatic switch |
| Charging time |
10s~999s |
Charging voltage
instability |
Less than 1% |
| External sync input |
50Hz |
| Trigger mode |
Automatic or manual, single trigger available |
| Trigger malfunction rate |
Less than 1% |
| Trigger range |
100% rated charging voltage |
| Phase test range |
0～360° |
| Operating load test |
internal，0～500V，5A continuous supply |
| Display screen |
10 inch TFT color touch screen |
Measurement display
resolution |
Better than 3% |
| DUT |
MOV, TVS, GDT, SPD, mains surge protection device |
| DUT residual voltage |
＜5kV |
Current measurement
(optional) |
Internal test box, Rogowski coil measurement, panel BNC output |
Voltage measurement
(optional) |
Internal test box, pure-resistance voltage divider, panel BNC output |
| Oscilloscope |
MDO3012, optional |
| Insulation strength |
≤500V RMS（common port COMMON to ground reference PE) |
| General data |
| Power supply |
AC220V±10%，50/60Hz，10A |
| Temperature |
-10-+40℃ |
| Humidity |
35%-85%RH（no condensation） |
| Ground resistance |
No more than 0.5Ω |
| Structure |
Open style, control and base separated |
| Size of test room |
Depends on model（base）+3M*5M（control) |
| Control table |
1.8M（width）*1.1M（height）*1M（depth） |
| No conductive dust, no fire or explosion danger, no corrosive metal and insulation air. Wave
form of mains voltage is sine wave. The THD is <5%. |
| Technical parameters of standard model |
| Model |
LCG 10A |
LCG 15A |
LCG 25A |
LCG 35A |
LCG 50A |
LCG 100A |
Current
peak |
0.5～10kA |
1～15kA |
1～25kA |
1～35kA |
1～50kA |
1～100kA |
| Stored energy |
36kJ |
56kJ |
100kJ |
150kJ |
200kJ |
400kJ |
| Charging voltage |
10kV |
14kV |
14kV |
14kV |
14kV |
14kV |
| Supply mains |
AC220V 32A |
AC220V 50A |
AC220V 50A |
AC220V 100A |
AC220V 100A |
AC220V 200A |
| Installation |
frame |
frame |
frame |
frame |
frame |
Split frame |
Attached table one:
| Other test waveform and output capacity |
| No. |
Waveform |
Type |
Max. Output peak |
Charging voltage |
Equivalent output impedance |
| D |
10/1000 |
Current wave |
30kA |
15kA |
0.5Ω |
| E |
100/1000 |
Current wave |
30kA |
15kA |
0.5Ω |
| P |
Other waveform can be customized |
*Internal one waveform for each equipment. Other waveform can be customized.
