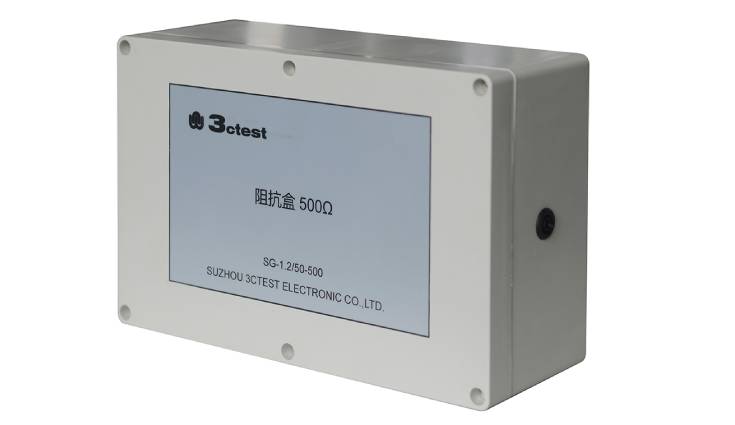

Impedance box 500Ω is used as a matched module for impedance of surge pulses to meet the test requirements of EUT impulse withstanding voltage testing. The waveform parameters on the output port of impedance box are in accordance with the open-circuit voltage waveform requirements of IEC 61000-4-5.
Test Connection Schematic Diagram
| Technical parameters | |
|---|---|
| Testing Voltage Range | 300V-6000V |
| Waveform Parameters | 1.2 μs±30%、50 μs±20% |
| Impedance | 500 Ω±5% |
| Output Terminal and Enclosure withstanding voltage | 10kV DC |
| General parameters | |
| Dimension | 230 mm*150 mm*85 mm |
| Weight | Approx. 1 kg |
| Ambient Temperature | 15 ℃ – 35 ℃ |
| Relative Humidity | 45%-75% |
| Atmospheric Pressure | 86 kPa-106 kPa |
Model：CWS 2000C & CWS 2000T
CWS 2000C&CWS 2000T communication surge immunity tester is a high testing equipment specially designed to simulate surge pulse interference.
Model：CWS 2000C & CWS 2000T
CWS 2000C&CWS 2000T communication surge im
...
Model：CWS 1000CT
CWS 1000CT combination wave lightning surge simulator is a high-end test equipment specially designed for simulating surge pulse interference, which can generate high-voltage pulse waveforms of 1.2/50μs, 8/20μs, 10/700μs and 5/320μs.
Model：CWS 1000CT
CWS 1000CT combination wave lightning surge simulator is a hi
...
The Lightning Surge Immunity Test Surge Test CWS 1000N is designed in accordance with IEC 61000-4-5, which is capable of simulating switching and lightning transients.
Model：CWS 1000N
The Lightning Surge Immunity Test Surge Test CWS 1000
Model：CWS 600T
The combination wave lightning surge simulator CWS 600T is designed to conduct surge test onto communication port.
Model：CWS 600T
The combination wave lightning surge simulator CWS 600T is desi
...
